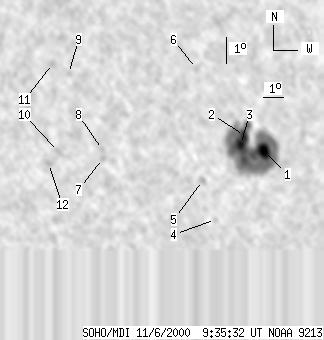

SOHO MDI 2000-11-06 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35 | 328 | 24 | 221 | 2.64 | 272.21 | 42.21 | 269.86 | 0.6730 | 1125.9 | 516.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-06 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 285 | 12 | 193 | 2.28 | 273.64 | 43.64 | 269.39 | 0.6920 | 1044.2 | 615.9 | |
| 9 | -1 | 6 | -1 | 2.94 | 272.66 | 42.66 | 270.29 | 0.6791 | 1192.5 | 999999 | |
| 8 | -1 | 6 | -1 | 2.60 | 272.44 | 42.44 | 269.78 | 0.6764 | 1580.0 | 999999 | |
| 0 | 3 | 0 | 2 | -0.23 | 271.09 | 41.09 | 265.39 | 0.6617 | 511.0 | 388.1 | |
| 0 | 5 | 0 | 3 | 1.30 | 270.44 | 40.44 | 267.64 | 0.6514 | 666.0 | 625.5 | |
| 0 | 6 | 0 | 4 | 5.62 | 270.36 | 40.36 | 274.30 | 0.6486 | -353.0 | -306.1 | |
| 0 | 4 | 0 | 3 | 2.34 | 265.57 | 35.57 | 268.82 | 0.5835 | 647.0 | 553.3 | |
| 0 | 3 | 0 | 2 | 2.69 | 265.58 | 35.58 | 269.41 | 0.5835 | 575.0 | 534.4 | |
| 0 | 4 | 0 | 3 | 5.67 | 264.13 | 34.13 | 274.62 | 0.5623 | -513.0 | -455.8 | |
| 0 | 6 | 0 | 4 | 2.69 | 263.52 | 33.52 | 269.24 | 0.5538 | -705.0 | -655.8 | |
| 0 | 7 | 0 | 4 | 6.08 | 263.41 | 33.41 | 275.40 | 0.5522 | -737.0 | -675.2 | |
| 0 | 5 | 0 | 3 | 2.24 | 263.05 | 33.04 | 268.39 | 0.5472 | -674.0 | -717.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
