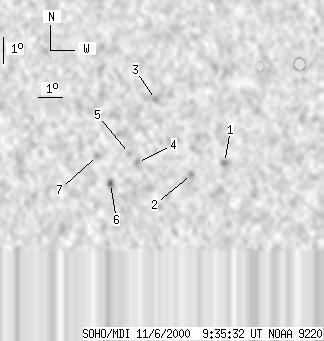

SOHO MDI 2000-11-06 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 37 | 0 | 20 | 6.80 | 210.61 | -19.39 | 80.06 | 0.3365 | -157.3 | -215.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-06 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 6.58 | 213.83 | -16.17 | 79.27 | 0.2829 | 727.0 | 624.9 | |
| 0 | 5 | 0 | 2 | 6.10 | 212.51 | -17.49 | 81.55 | 0.3035 | 814.0 | 593.8 | |
| 0 | 5 | 0 | 3 | 8.96 | 210.91 | -19.09 | 73.66 | 0.3382 | -808.0 | -687.2 | |
| 0 | 5 | 0 | 3 | 6.51 | 210.29 | -19.71 | 81.11 | 0.3407 | -590.0 | -445.6 | |
| 0 | 3 | 0 | 2 | 6.85 | 209.95 | -20.06 | 80.25 | 0.3470 | 450.0 | 294.9 | |
| 0 | 5 | 0 | 3 | 5.68 | 209.21 | -20.79 | 83.80 | 0.3569 | -1083.0 | -824.8 | |
| 0 | 8 | 0 | 4 | 6.75 | 208.63 | -21.38 | 81.03 | 0.3681 | -611.0 | -522.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
