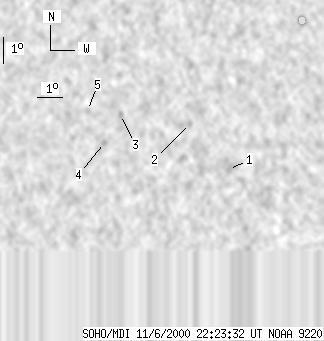

SOHO MDI 2000-11-06 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 29 | 0 | 15 | 5.52 | 212.00 | -10.97 | 80.42 | 0.1935 | -364.0 | -432.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-06 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 13 | 0 | 7 | 4.59 | 214.18 | -8.79 | 83.68 | 0.1541 | -847.0 | -719.5 | |
| 0 | 5 | 0 | 2 | 6.34 | 212.63 | -10.35 | 75.03 | 0.1857 | 565.0 | 559.9 | |
| 0 | 3 | 0 | 2 | 6.65 | 209.89 | -13.08 | 76.55 | 0.2323 | -644.0 | -596.3 | |
| 0 | 4 | 0 | 2 | 5.57 | 209.28 | -13.69 | 81.55 | 0.2393 | -503.0 | -387.1 | |
| 0 | 4 | 0 | 2 | 6.79 | 208.57 | -14.40 | 77.12 | 0.2545 | -391.0 | -305.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
