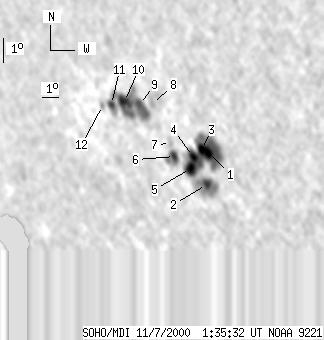

SOHO MDI 2000-11-07 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66 | 375 | 49 | 279 | -12.09 | 175.44 | -45.78 | 109.86 | 0.7473 | 298.5 | 133.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-07 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 152 | 5 | 110 | -12.47 | 177.58 | -43.64 | 111.14 | 0.7248 | 1317.7 | 687.5 | |
| 7 | 54 | 5 | 39 | -13.77 | 177.18 | -44.04 | 112.67 | 0.7341 | 869.6 | 328.1 | |
| 7 | -1 | 5 | -1 | -12.37 | 177.22 | -44.00 | 110.85 | 0.7285 | 894.1 | 999999 | |
| 6 | -1 | 5 | -1 | -12.67 | 176.71 | -44.51 | 111.05 | 0.7352 | 1053.4 | 999999 | |
| 12 | -1 | 9 | -1 | -13.16 | 176.43 | -44.79 | 111.58 | 0.7400 | 761.7 | 999999 | |
| 5 | 23 | 4 | 17 | -12.72 | 175.64 | -45.58 | 110.69 | 0.7472 | 544.9 | 196.1 | |
| 0 | 7 | 0 | 5 | -12.21 | 175.53 | -45.69 | 109.99 | 0.7467 | 728.0 | 575.2 | |
| 0 | 7 | 0 | 5 | -10.65 | 174.83 | -46.39 | 107.74 | 0.7494 | -794.0 | -763.9 | |
| 5 | 128 | 4 | 99 | -10.73 | 174.07 | -47.15 | 107.59 | 0.7580 | -1051.1 | -526.6 | |
| 12 | -9 | 9 | -9 | -10.65 | 173.21 | -48.01 | 107.21 | 0.7670 | -956.9 | 999999 | |
| 4 | -9 | 3 | -9 | -10.81 | 172.41 | -48.81 | 107.16 | 0.7760 | -658.4 | 999999 | |
| 0 | 4 | 0 | 4 | -10.87 | 171.85 | -49.37 | 107.08 | 0.7820 | -497.0 | -373.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
