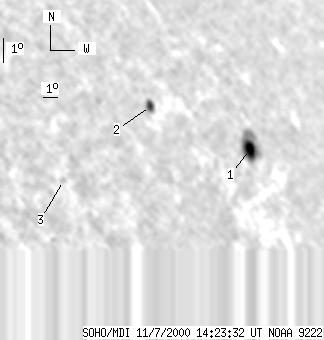

SOHO MDI 2000-11-07 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 82 | 20 | 80 | 15.77 | 273.15 | 58.95 | 286.30 | 0.8598 | 286.1 | 20.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-07 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 64 | 15 | 65 | 15.49 | 274.60 | 60.40 | 285.78 | 0.8728 | 542.1 | 96.5 | |
| 6 | 14 | 5 | 12 | 17.53 | 268.16 | 53.96 | 289.00 | 0.8177 | -451.8 | -287.6 | |
| 0 | 4 | 0 | 3 | 14.90 | 261.68 | 47.48 | 286.85 | 0.7466 | -468.0 | -399.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
