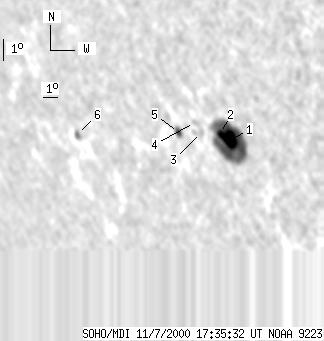

SOHO MDI 2000-11-07 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26 | 194 | 21 | 158 | -16.36 | 163.17 | -49.27 | 113.80 | 0.7962 | -809.8 | -294.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-07 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 161 | 15 | 129 | -16.41 | 164.17 | -48.27 | 114.20 | 0.7872 | -1071.9 | -378.6 | |
| 5 | -1 | 4 | -1 | -16.19 | 163.63 | -48.81 | 113.73 | 0.7917 | -547.0 | 999999 | |
| 0 | 10 | 0 | 8 | -16.21 | 162.45 | -49.99 | 113.32 | 0.8032 | -543.0 | -291.7 | |
| 0 | 4 | 0 | 3 | -15.81 | 162.15 | -50.29 | 112.75 | 0.8049 | -279.0 | -341.4 | |
| 3 | 10 | 2 | 9 | -16.28 | 160.96 | -51.48 | 112.89 | 0.8174 | 428.1 | 339.7 | |
| 0 | 9 | 0 | 9 | -16.75 | 153.61 | -58.82 | 111.25 | 0.8810 | 418.0 | 283.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
