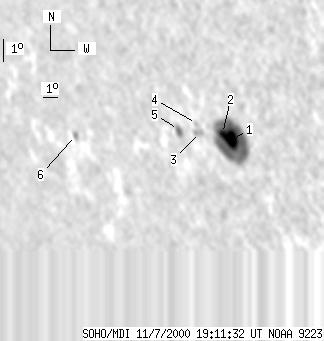

SOHO MDI 2000-11-07 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 192 | 19 | 153 | -16.35 | 163.43 | -48.13 | 114.21 | 0.7852 | -988.2 | -332.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-07 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 165 | 15 | 130 | -16.41 | 164.14 | -47.42 | 114.53 | 0.7787 | -1129.0 | -402.5 | |
| 5 | -1 | 4 | -1 | -16.19 | 163.67 | -47.88 | 114.08 | 0.7826 | -657.3 | 999999 | |
| 0 | 9 | 0 | 8 | -16.21 | 162.33 | -49.23 | 113.60 | 0.7959 | -521.0 | -309.6 | |
| 0 | 3 | 0 | 2 | -15.85 | 162.20 | -49.36 | 113.12 | 0.7959 | -404.0 | -447.4 | |
| 0 | 10 | 0 | 8 | -16.16 | 160.97 | -50.59 | 113.05 | 0.8087 | 444.0 | 396.7 | |
| 0 | 5 | 0 | 5 | -16.79 | 153.58 | -57.97 | 111.51 | 0.8745 | 472.0 | 333.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
