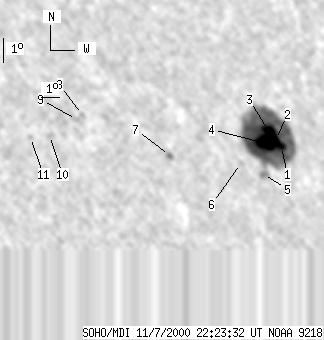

SOHO MDI 2000-11-07 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50 | 402 | 37 | 293 | 19.06 | 255.66 | 45.86 | 292.85 | 0.7378 | 1027.7 | 425.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-07 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 364 | 5 | 268 | 18.76 | 256.79 | 46.99 | 292.08 | 0.7495 | 618.1 | 473.8 | |
| 6 | -1 | 5 | -1 | 19.05 | 256.54 | 46.74 | 292.53 | 0.7476 | 697.1 | 999999 | |
| 15 | -1 | 11 | -1 | 19.42 | 256.26 | 46.46 | 293.10 | 0.7456 | 811.8 | 999999 | |
| 22 | -1 | 16 | -1 | 18.92 | 255.90 | 46.10 | 292.54 | 0.7403 | 1519.5 | 999999 | |
| 0 | 9 | 0 | 7 | 17.70 | 255.36 | 45.56 | 291.07 | 0.7313 | 921.0 | 776.2 | |
| 0 | 4 | 0 | 3 | 18.19 | 254.20 | 44.40 | 292.06 | 0.7196 | 628.0 | 474.8 | |
| 0 | 4 | 0 | 3 | 18.66 | 250.43 | 40.63 | 294.00 | 0.6777 | -611.0 | -481.2 | |
| 0 | 3 | 0 | 2 | 20.46 | 246.39 | 36.59 | 298.42 | 0.6373 | -640.0 | -602.9 | |
| 0 | 7 | 0 | 4 | 20.27 | 246.03 | 36.23 | 298.33 | 0.6321 | -716.0 | -702.6 | |
| 0 | 7 | 0 | 4 | 19.68 | 244.51 | 34.71 | 298.25 | 0.6110 | -691.0 | -667.8 | |
| 0 | 4 | 0 | 2 | 19.63 | 243.56 | 33.76 | 298.71 | 0.5991 | -654.0 | -550.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
