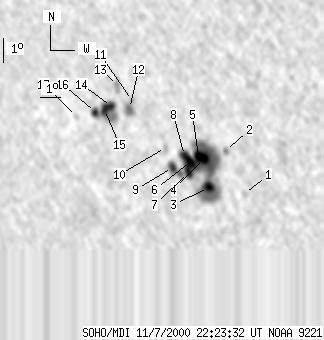

SOHO MDI 2000-11-07 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65 | 387 | 40 | 240 | -12.29 | 176.30 | -33.51 | 116.06 | 0.6027 | 504.3 | 270.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-07 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -13.79 | 179.31 | -30.49 | 120.46 | 0.5739 | -599.0 | -563.3 | |
| 0 | 5 | 0 | 3 | -12.09 | 178.67 | -31.13 | 117.31 | 0.5711 | 786.0 | 651.4 | |
| 10 | 284 | 6 | 175 | -13.61 | 177.67 | -32.13 | 118.94 | 0.5930 | 1127.5 | 561.3 | |
| 14 | -3 | 8 | -3 | -12.45 | 177.65 | -32.15 | 117.14 | 0.5862 | 1528.7 | 999999 | |
| -4 | -3 | -4 | -3 | -12.37 | 177.38 | -32.42 | 116.84 | 0.5892 | 999999 | 999999 | |
| 8 | -3 | 5 | -3 | -12.59 | 176.98 | -32.82 | 116.90 | 0.5955 | 1033.0 | 999999 | |
| 8 | -3 | 5 | -3 | -13.03 | 176.82 | -32.98 | 117.47 | 0.6001 | 921.0 | 999999 | |
| 3 | -3 | 2 | -3 | -12.36 | 176.73 | -33.07 | 116.38 | 0.5973 | 1075.1 | 999999 | |
| 5 | -3 | 3 | -3 | -12.86 | 176.09 | -33.72 | 116.72 | 0.6081 | 530.3 | 999999 | |
| 0 | 4 | 0 | 3 | -12.07 | 175.87 | -33.93 | 115.38 | 0.6065 | 753.0 | 503.2 | |
| 0 | 5 | 0 | 3 | -10.25 | 174.55 | -35.26 | 111.82 | 0.6142 | -842.0 | -696.7 | |
| 0 | 13 | 0 | 8 | -10.57 | 174.36 | -35.44 | 112.22 | 0.6181 | -968.0 | -721.8 | |
| 0 | 12 | 0 | 7 | -9.68 | 173.90 | -35.90 | 110.61 | 0.6199 | -837.0 | -605.9 | |
| 5 | 56 | 3 | 36 | -10.53 | 173.49 | -36.31 | 111.69 | 0.6288 | -1067.2 | -608.6 | |
| 7 | -14 | 5 | -14 | -10.66 | 173.13 | -36.67 | 111.70 | 0.6339 | -1153.5 | 999999 | |
| 5 | -14 | 3 | -14 | -10.80 | 172.67 | -37.13 | 111.67 | 0.6403 | -738.1 | 999999 | |
| 0 | 3 | 0 | 2 | -10.99 | 171.70 | -38.10 | 111.47 | 0.6532 | -512.0 | -512.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
