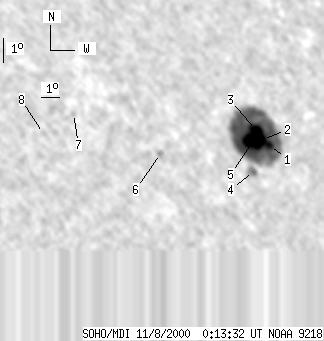

SOHO MDI 2000-11-08 00:13:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 360 | 34 | 270 | 19.01 | 255.88 | 47.08 | 292.42 | 0.7510 | 1002.4 | 453.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 00:13:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 334 | 5 | 251 | 18.75 | 256.81 | 48.01 | 291.80 | 0.7604 | 513.5 | 478.3 | |
| 6 | -1 | 4 | -1 | 19.00 | 256.48 | 47.68 | 292.22 | 0.7576 | 686.1 | 999999 | |
| 13 | -1 | 10 | -1 | 19.37 | 256.26 | 47.46 | 292.76 | 0.7562 | 749.0 | 999999 | |
| 0 | 13 | 0 | 10 | 17.76 | 255.49 | 46.70 | 290.86 | 0.7440 | 932.0 | 705.1 | |
| 20 | -1 | 15 | -1 | 18.95 | 255.85 | 47.06 | 292.32 | 0.7508 | 1484.6 | 999999 | |
| 0 | 6 | 0 | 4 | 18.69 | 250.52 | 41.72 | 293.65 | 0.6906 | -524.0 | -349.0 | |
| 0 | 3 | 0 | 2 | 20.46 | 246.41 | 37.62 | 297.91 | 0.6495 | -699.0 | -646.5 | |
| 0 | 4 | 0 | 3 | 19.71 | 244.67 | 35.88 | 297.68 | 0.6253 | -645.0 | -673.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
