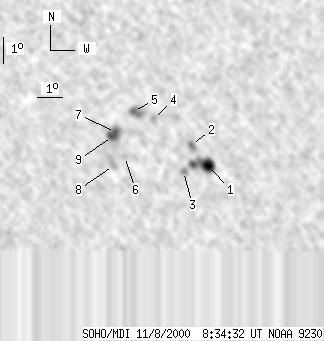

SOHO MDI 2000-11-08 08:34:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 119 | 9 | 61 | 11.36 | 211.44 | 7.22 | 318.52 | 0.1872 | 383.3 | -10.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 08:34:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 41 | 6 | 21 | 10.71 | 213.28 | 9.07 | 309.16 | 0.2007 | 1363.1 | 999.7 | |
| 0 | 10 | 0 | 5 | 11.53 | 212.63 | 8.42 | 314.34 | 0.2016 | 756.0 | 845.8 | |
| 0 | 6 | 0 | 3 | 10.49 | 212.29 | 8.08 | 311.48 | 0.1853 | 771.0 | 783.6 | |
| 0 | 7 | 0 | 4 | 12.52 | 211.16 | 6.94 | 323.06 | 0.1973 | -523.0 | -476.5 | |
| 0 | 14 | 0 | 7 | 12.83 | 210.37 | 6.16 | 327.20 | 0.1941 | -1182.0 | -1056.7 | |
| 0 | 5 | 0 | 2 | 11.09 | 209.98 | 5.77 | 323.28 | 0.1657 | -749.0 | -644.8 | |
| 3 | 21 | 1 | 11 | 12.02 | 209.64 | 5.43 | 328.03 | 0.1756 | -1291.7 | -1024.0 | |
| 0 | 15 | 0 | 8 | 10.74 | 209.54 | 5.33 | 324.13 | 0.1564 | -1030.0 | -792.7 | |
| 4 | -7 | 2 | -7 | 11.87 | 209.52 | 5.31 | 328.12 | 0.1723 | -1292.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
