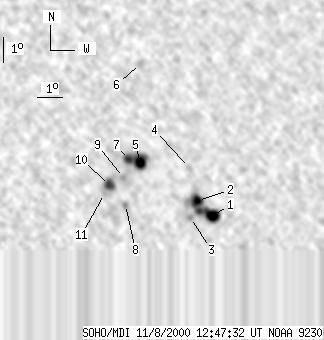

SOHO MDI 2000-11-08 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40 | 165 | 21 | 83 | 11.87 | 211.69 | 9.79 | 311.55 | 0.2248 | 57.6 | 22.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 73 | 7 | 37 | 10.67 | 213.48 | 11.59 | 302.59 | 0.2353 | 1309.7 | 936.4 | |
| 7 | -1 | 4 | -1 | 11.26 | 212.91 | 11.01 | 306.03 | 0.2327 | 1383.4 | 999999 | |
| 0 | 5 | 0 | 2 | 10.60 | 212.60 | 10.71 | 304.36 | 0.2222 | 1093.0 | 922.8 | |
| 0 | 5 | 0 | 2 | 12.54 | 212.64 | 10.74 | 311.04 | 0.2423 | 440.0 | 358.9 | |
| 8 | 44 | 4 | 22 | 12.76 | 210.69 | 8.79 | 317.33 | 0.2210 | -1344.4 | -977.5 | |
| 0 | 9 | 0 | 4 | 16.63 | 210.85 | 8.95 | 326.83 | 0.2738 | -305.0 | -267.8 | |
| 4 | -5 | 2 | -5 | 12.88 | 210.21 | 8.32 | 319.26 | 0.2171 | -1387.4 | 999999 | |
| 0 | 5 | 0 | 3 | 11.13 | 210.04 | 8.15 | 313.85 | 0.1937 | -928.0 | -685.4 | |
| 0 | 4 | 0 | 2 | 12.18 | 209.99 | 8.10 | 317.77 | 0.2058 | -918.0 | -790.7 | |
| 7 | 17 | 4 | 9 | 11.87 | 209.43 | 7.53 | 318.75 | 0.1955 | -1255.7 | -889.7 | |
| 0 | 3 | 0 | 2 | 11.56 | 209.22 | 7.33 | 318.44 | 0.1892 | -624.0 | -570.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
