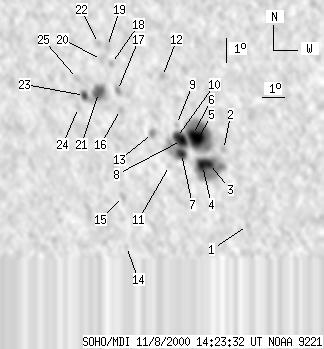

SOHO MDI 2000-11-08 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70 | 377 | 40 | 214 | -12.35 | 176.31 | -24.71 | 123.30 | 0.4910 | 733.4 | 308.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -15.95 | 179.32 | -21.69 | 132.76 | 0.4861 | -722.0 | -457.2 | |
| 0 | 4 | 0 | 2 | -12.90 | 178.62 | -22.40 | 126.77 | 0.4657 | 475.0 | 412.0 | |
| 15 | 82 | 8 | 46 | -13.48 | 177.96 | -23.06 | 127.00 | 0.4789 | 1271.7 | 461.7 | |
| -3 | -3 | -3 | -3 | -13.57 | 177.65 | -23.37 | 126.79 | 0.4835 | 999999 | 999999 | |
| 20 | 174 | 11 | 98 | -12.53 | 177.54 | -23.48 | 124.86 | 0.4760 | 1636.6 | 783.8 | |
| -5 | -5 | -5 | -5 | -12.33 | 177.34 | -23.68 | 124.30 | 0.4768 | 999999 | 999999 | |
| 8 | -5 | 4 | -5 | -13.11 | 176.79 | -24.23 | 125.04 | 0.4902 | 955.3 | 999999 | |
| 13 | -5 | 8 | -5 | -12.59 | 176.84 | -24.17 | 124.20 | 0.4852 | 1252.1 | 999999 | |
| 0 | 3 | 0 | 2 | -11.95 | 176.69 | -24.33 | 122.91 | 0.4821 | 410.0 | 372.5 | |
| -8 | -5 | -8 | -5 | -12.47 | 176.64 | -24.38 | 123.78 | 0.4869 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -13.61 | 176.21 | -24.80 | 125.27 | 0.5015 | 305.0 | 321.3 | |
| 0 | 6 | 0 | 3 | -10.06 | 176.26 | -24.76 | 119.00 | 0.4735 | -536.0 | -534.5 | |
| 0 | 8 | 0 | 4 | -12.34 | 175.61 | -25.41 | 122.49 | 0.4990 | 691.0 | 646.8 | |
| 0 | 3 | 0 | 2 | -16.96 | 173.86 | -27.16 | 128.13 | 0.5573 | -491.0 | -446.2 | |
| 0 | 6 | 0 | 4 | -14.92 | 174.02 | -27.00 | 125.18 | 0.5388 | -799.0 | -571.7 | |
| 0 | 6 | 0 | 3 | -11.42 | 174.30 | -26.71 | 119.65 | 0.5091 | -212.0 | -105.5 | |
| 0 | 9 | 0 | 5 | -10.67 | 174.25 | -26.77 | 118.27 | 0.5047 | -1015.0 | -684.4 | |
| 0 | 4 | 0 | 2 | -9.61 | 174.08 | -26.94 | 116.22 | 0.4999 | -770.0 | -695.3 | |
| 0 | 8 | 0 | 5 | -8.94 | 173.96 | -27.06 | 114.90 | 0.4974 | -679.0 | -609.3 | |
| 0 | 9 | 0 | 5 | -9.46 | 173.65 | -27.36 | 115.60 | 0.5048 | -647.0 | -613.5 | |
| 10 | 25 | 6 | 15 | -10.77 | 173.40 | -27.62 | 117.73 | 0.5166 | -1157.9 | -817.2 | |
| 0 | 5 | 0 | 3 | -8.83 | 173.58 | -27.44 | 114.39 | 0.5021 | -675.0 | -633.0 | |
| 4 | 8 | 3 | 5 | -10.91 | 172.77 | -28.25 | 117.45 | 0.5259 | -732.1 | -549.0 | |
| 0 | 5 | 0 | 3 | -11.39 | 172.45 | -28.57 | 118.02 | 0.5332 | -723.0 | -593.6 | |
| 0 | 6 | 0 | 3 | -10.24 | 172.52 | -28.50 | 116.10 | 0.5249 | -547.0 | -414.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
