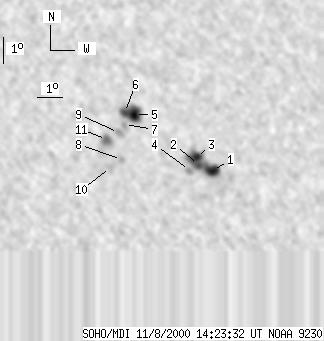

SOHO MDI 2000-11-08 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39 | 158 | 20 | 80 | 11.58 | 211.61 | 10.59 | 308.61 | 0.2321 | -32.8 | 10.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 69 | 6 | 35 | 10.65 | 213.60 | 12.58 | 300.52 | 0.2497 | 1306.9 | 1023.7 | |
| 3 | -1 | 2 | -1 | 10.89 | 213.05 | 12.03 | 302.46 | 0.2437 | 1395.8 | 999999 | |
| 3 | -1 | 2 | -1 | 11.16 | 212.98 | 11.96 | 303.56 | 0.2452 | 1375.5 | 999999 | |
| 0 | 5 | 0 | 3 | 10.66 | 212.68 | 11.66 | 302.42 | 0.2365 | 971.0 | 882.1 | |
| 13 | 44 | 6 | 22 | 12.86 | 210.57 | 9.55 | 315.34 | 0.2313 | -1354.3 | -941.8 | |
| 5 | -5 | 3 | -5 | 12.94 | 210.17 | 9.16 | 316.79 | 0.2276 | -1393.5 | 999999 | |
| 0 | 4 | 0 | 2 | 12.47 | 210.16 | 9.14 | 315.36 | 0.2217 | -909.0 | -746.5 | |
| 0 | 5 | 0 | 2 | 11.12 | 209.99 | 8.97 | 311.11 | 0.2041 | -909.0 | -708.2 | |
| 0 | 8 | 0 | 4 | 12.16 | 209.91 | 8.89 | 315.12 | 0.2151 | -904.0 | -774.4 | |
| 0 | 10 | 0 | 5 | 10.81 | 209.55 | 8.53 | 311.35 | 0.1950 | -971.0 | -754.9 | |
| 3 | 13 | 1 | 7 | 11.90 | 209.42 | 8.40 | 315.78 | 0.2060 | -1221.8 | -1018.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
