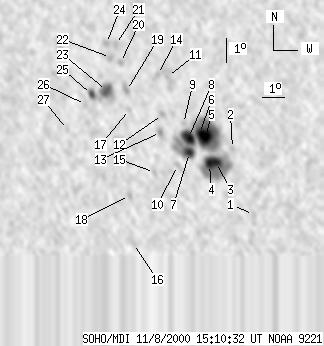

SOHO MDI 2000-11-08 15:10:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77 | 439 | 45 | 247 | -12.36 | 176.35 | -24.24 | 123.80 | 0.4850 | 802.1 | 249.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 15:10:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 11 | 0 | 6 | -15.58 | 179.29 | -21.30 | 132.67 | 0.4779 | -239.0 | -371.5 | |
| 0 | 4 | 0 | 2 | -12.93 | 178.66 | -21.93 | 127.39 | 0.4601 | 399.0 | 430.6 | |
| 14 | 91 | 8 | 51 | -13.51 | 177.92 | -22.67 | 127.51 | 0.4744 | 1280.0 | 435.4 | |
| -3 | -3 | -3 | -3 | -13.60 | 177.61 | -22.98 | 127.29 | 0.4790 | 999999 | 999999 | |
| 28 | 179 | 16 | 101 | -12.48 | 177.55 | -23.04 | 125.26 | 0.4700 | 1596.9 | 734.8 | |
| -5 | -5 | -5 | -5 | -12.37 | 177.30 | -23.29 | 124.78 | 0.4721 | 999999 | 999999 | |
| 6 | -5 | 4 | -5 | -13.14 | 176.79 | -23.79 | 125.57 | 0.4850 | 897.3 | 999999 | |
| 13 | -5 | 8 | -5 | -12.54 | 176.81 | -23.78 | 124.54 | 0.4798 | 1258.0 | 999999 | |
| 0 | 3 | 0 | 2 | -11.98 | 176.65 | -23.94 | 123.38 | 0.4773 | 243.0 | 355.1 | |
| 0 | 4 | 0 | 2 | -13.68 | 176.22 | -24.37 | 125.85 | 0.4967 | 402.0 | 405.0 | |
| 0 | 28 | 0 | 15 | -10.13 | 176.13 | -24.46 | 119.43 | 0.4700 | -667.0 | -378.5 | |
| 0 | 5 | 0 | 3 | -11.65 | 175.78 | -24.81 | 121.86 | 0.4859 | 638.0 | 643.4 | |
| 0 | 6 | 0 | 3 | -12.37 | 175.62 | -24.97 | 122.98 | 0.4936 | 624.0 | 613.6 | |
| 0 | 3 | 0 | 2 | -10.06 | 175.70 | -24.89 | 118.89 | 0.4752 | -530.0 | -461.4 | |
| 0 | 5 | 0 | 3 | -13.98 | 175.18 | -25.41 | 125.26 | 0.5120 | 651.0 | 476.9 | |
| 0 | 5 | 0 | 3 | -16.90 | 173.85 | -26.74 | 128.47 | 0.5521 | -590.0 | -343.3 | |
| 0 | 5 | 0 | 3 | -11.49 | 174.36 | -26.23 | 120.20 | 0.5032 | -374.0 | -231.4 | |
| 0 | 5 | 0 | 3 | -14.95 | 173.95 | -26.64 | 125.57 | 0.5347 | -658.0 | -569.4 | |
| 0 | 11 | 0 | 6 | -10.74 | 174.30 | -26.29 | 118.81 | 0.4987 | -892.0 | -686.4 | |
| 0 | 5 | 0 | 3 | -9.63 | 174.13 | -26.45 | 116.67 | 0.4935 | -670.0 | -674.1 | |
| 0 | 6 | 0 | 3 | -8.93 | 173.97 | -26.61 | 115.23 | 0.4912 | -702.0 | -703.8 | |
| 0 | 4 | 0 | 2 | -9.45 | 173.71 | -26.87 | 115.97 | 0.4980 | -774.0 | -583.6 | |
| 11 | 34 | 6 | 19 | -10.76 | 173.42 | -27.17 | 118.08 | 0.5105 | -1176.2 | -648.8 | |
| 0 | 6 | 0 | 3 | -8.90 | 173.58 | -27.00 | 114.86 | 0.4964 | -796.0 | -726.0 | |
| 5 | 11 | 3 | 7 | -10.94 | 172.74 | -27.85 | 117.82 | 0.5207 | -748.5 | -555.8 | |
| 0 | 4 | 0 | 2 | -11.34 | 172.43 | -28.16 | 118.27 | 0.5275 | -627.0 | -563.4 | |
| 0 | 4 | 0 | 3 | -12.37 | 171.50 | -29.08 | 119.22 | 0.5462 | -427.0 | -379.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
