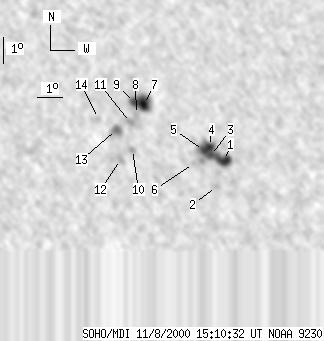

SOHO MDI 2000-11-08 15:10:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35 | 188 | 18 | 97 | 11.62 | 211.44 | 10.85 | 308.12 | 0.2359 | 349.9 | -21.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 15:10:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 78 | 4 | 40 | 10.64 | 213.66 | 13.07 | 299.60 | 0.2568 | 1283.9 | 1000.9 | |
| 0 | 6 | 0 | 3 | 9.64 | 213.29 | 12.71 | 296.64 | 0.2437 | 720.0 | 511.5 | |
| 4 | -1 | 2 | -1 | 10.84 | 213.10 | 12.52 | 301.33 | 0.2503 | 1471.7 | 999999 | |
| 5 | -1 | 3 | -1 | 11.19 | 213.08 | 12.49 | 302.59 | 0.2530 | 1234.1 | 999999 | |
| 5 | -1 | 3 | -1 | 11.04 | 212.83 | 12.24 | 302.56 | 0.2481 | 1579.9 | 999999 | |
| 0 | 3 | 0 | 2 | 10.54 | 212.41 | 11.82 | 301.66 | 0.2378 | 720.0 | 543.5 | |
| 7 | 49 | 4 | 25 | 12.85 | 210.50 | 9.92 | 314.29 | 0.2356 | -1505.3 | -963.2 | |
| 0 | 3 | 0 | 2 | 12.47 | 210.21 | 9.62 | 313.90 | 0.2276 | -697.0 | -776.9 | |
| 5 | -7 | 2 | -7 | 12.93 | 210.15 | 9.56 | 315.57 | 0.2323 | -1435.0 | 999999 | |
| 0 | 5 | 0 | 3 | 11.11 | 210.00 | 9.42 | 309.77 | 0.2098 | -899.0 | -644.7 | |
| 0 | 10 | 0 | 5 | 12.16 | 209.96 | 9.37 | 313.62 | 0.2209 | -945.0 | -810.9 | |
| 0 | 8 | 0 | 4 | 10.73 | 209.52 | 8.93 | 309.77 | 0.1993 | -960.0 | -755.2 | |
| 0 | 16 | 0 | 8 | 11.89 | 209.39 | 8.81 | 314.46 | 0.2109 | -1291.0 | -945.4 | |
| 0 | 10 | 0 | 5 | 12.32 | 208.69 | 8.10 | 318.26 | 0.2079 | -502.0 | -497.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
