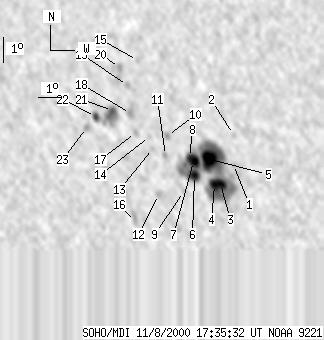

SOHO MDI 2000-11-08 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62 | 430 | 35 | 245 | -12.25 | 176.31 | -22.95 | 125.02 | 0.4676 | 1015.4 | 309.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-08 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -12.68 | 178.50 | -20.76 | 128.41 | 0.4433 | 681.0 | 661.8 | |
| 0 | 5 | 0 | 3 | -11.48 | 178.59 | -20.67 | 126.31 | 0.4310 | 545.0 | 457.6 | |
| 7 | 296 | 4 | 165 | -13.45 | 177.88 | -21.38 | 128.99 | 0.4581 | 1424.9 | 631.7 | |
| 5 | -3 | 3 | -3 | -13.50 | 177.62 | -21.64 | 128.74 | 0.4617 | 1190.1 | 999999 | |
| 21 | -3 | 12 | -3 | -12.50 | 177.50 | -21.76 | 126.81 | 0.4540 | 1656.9 | 999999 | |
| 9 | -3 | 5 | -3 | -13.16 | 176.80 | -22.46 | 127.13 | 0.4686 | 894.8 | 999999 | |
| 13 | -3 | 7 | -3 | -12.60 | 176.81 | -22.45 | 126.15 | 0.4635 | 1298.7 | 999999 | |
| -7 | -3 | -7 | -3 | -12.44 | 176.65 | -22.61 | 125.68 | 0.4641 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -13.81 | 176.26 | -23.00 | 127.62 | 0.4810 | 528.0 | 481.7 | |
| 0 | 5 | 0 | 3 | -11.59 | 175.79 | -23.47 | 123.15 | 0.4680 | 843.0 | 682.0 | |
| 0 | 4 | 0 | 2 | -12.39 | 175.63 | -23.63 | 124.42 | 0.4766 | 810.0 | 529.8 | |
| 0 | 5 | 0 | 3 | -13.96 | 175.16 | -24.10 | 126.61 | 0.4957 | 659.0 | 481.2 | |
| 0 | 3 | 0 | 2 | -12.12 | 175.10 | -24.16 | 123.36 | 0.4812 | 387.0 | 317.4 | |
| 0 | 3 | 0 | 2 | -11.65 | 175.01 | -24.25 | 122.42 | 0.4785 | 473.0 | 418.6 | |
| 0 | 3 | 0 | 2 | -8.65 | 174.74 | -24.52 | 116.49 | 0.4604 | -683.0 | -644.2 | |
| 0 | 10 | 0 | 6 | -15.08 | 174.02 | -25.24 | 127.21 | 0.5190 | -833.0 | -622.9 | |
| 0 | 5 | 0 | 3 | -11.50 | 174.42 | -24.84 | 121.56 | 0.4851 | -250.0 | -144.4 | |
| 0 | 8 | 0 | 5 | -10.75 | 174.27 | -24.99 | 120.05 | 0.4814 | -745.0 | -629.1 | |
| 0 | 5 | 0 | 3 | -9.65 | 174.24 | -25.02 | 117.95 | 0.4740 | -623.0 | -617.6 | |
| 0 | 28 | 0 | 16 | -8.94 | 173.95 | -25.31 | 116.35 | 0.4733 | -969.0 | -625.6 | |
| 3 | 29 | 2 | 17 | -10.65 | 173.50 | -25.76 | 119.13 | 0.4910 | -1324.2 | -735.6 | |
| 4 | 10 | 2 | 6 | -10.91 | 172.74 | -26.52 | 118.90 | 0.5029 | -737.2 | -527.4 | |
| 0 | 5 | 0 | 3 | -11.36 | 172.30 | -26.96 | 119.30 | 0.5118 | -865.0 | -665.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
