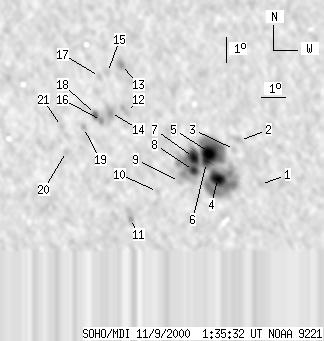

SOHO MDI 2000-11-09 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63 | 415 | 34 | 227 | -12.48 | 176.58 | -18.29 | 131.62 | 0.4118 | 1225.8 | 343.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-09 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -13.61 | 179.52 | -15.34 | 138.52 | 0.3900 | -698.0 | -612.8 | |
| 0 | 6 | 0 | 3 | -11.86 | 178.78 | -16.09 | 133.94 | 0.3784 | 596.0 | 505.3 | |
| 0 | 5 | 0 | 3 | -12.22 | 178.55 | -16.32 | 134.24 | 0.3850 | 711.0 | 487.0 | |
| 15 | 312 | 8 | 169 | -13.40 | 177.77 | -17.10 | 135.09 | 0.4069 | 1345.3 | 611.1 | |
| 23 | -4 | 12 | -4 | -12.36 | 177.51 | -17.36 | 132.76 | 0.3986 | 1861.1 | 999999 | |
| 5 | -4 | 3 | -4 | -12.77 | 177.36 | -17.51 | 133.27 | 0.4047 | 1079.1 | 999999 | |
| 13 | -4 | 7 | -4 | -12.58 | 176.84 | -18.03 | 132.08 | 0.4089 | 1404.1 | 999999 | |
| 4 | -4 | 2 | -4 | -13.10 | 176.80 | -18.07 | 132.98 | 0.4148 | 945.5 | 999999 | |
| 0 | 2 | 0 | 1 | -13.55 | 176.18 | -18.69 | 132.85 | 0.4267 | 423.0 | 355.3 | |
| 0 | 3 | 0 | 2 | -13.97 | 175.22 | -19.65 | 132.18 | 0.4422 | 358.0 | 332.0 | |
| 0 | 13 | 0 | 8 | -15.09 | 173.97 | -20.90 | 132.34 | 0.4679 | -947.0 | -638.9 | |
| 0 | 9 | 0 | 5 | -10.84 | 174.17 | -20.69 | 124.96 | 0.4253 | -516.0 | -557.0 | |
| 0 | 10 | 0 | 5 | -8.95 | 174.09 | -20.78 | 120.99 | 0.4106 | -1030.0 | -797.9 | |
| 0 | 12 | 0 | 6 | -10.85 | 173.50 | -21.37 | 124.15 | 0.4342 | -904.0 | -882.3 | |
| 0 | 6 | 0 | 3 | -9.27 | 173.49 | -21.38 | 120.96 | 0.4214 | -292.0 | -309.8 | |
| 0 | 3 | 0 | 2 | -11.18 | 173.10 | -21.77 | 124.28 | 0.4423 | -857.0 | -690.7 | |
| 0 | 5 | 0 | 3 | -9.44 | 173.14 | -21.73 | 120.90 | 0.4274 | -122.0 | -136.1 | |
| 3 | 11 | 2 | 6 | -10.95 | 172.86 | -22.01 | 123.56 | 0.4434 | -839.2 | -537.3 | |
| 0 | 4 | 0 | 2 | -11.48 | 172.31 | -22.56 | 123.91 | 0.4549 | -701.0 | -619.1 | |
| 0 | 5 | 0 | 3 | -12.45 | 171.50 | -23.37 | 124.76 | 0.4735 | -590.0 | -608.8 | |
| 0 | 4 | 0 | 3 | -11.46 | 171.37 | -23.49 | 122.83 | 0.4669 | -531.0 | -420.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
