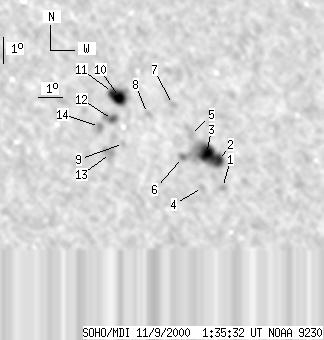

SOHO MDI 2000-11-09 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49 | 208 | 25 | 110 | 11.42 | 211.98 | 17.11 | 296.42 | 0.3238 | 224.9 | 88.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-09 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 9.48 | 214.19 | 19.32 | 288.44 | 0.3455 | -802.0 | -191.2 | |
| 10 | 77 | 5 | 41 | 10.53 | 214.08 | 19.22 | 291.41 | 0.3491 | 1081.3 | 983.8 | |
| 20 | -2 | 10 | -2 | 10.81 | 213.61 | 18.74 | 292.63 | 0.3434 | 1505.1 | 999999 | |
| 0 | 8 | 0 | 4 | 9.50 | 213.36 | 18.49 | 289.17 | 0.3327 | 829.0 | 578.2 | |
| 0 | 15 | 0 | 8 | 11.52 | 212.99 | 18.12 | 295.23 | 0.3385 | 568.0 | 444.9 | |
| 0 | 5 | 0 | 3 | 10.67 | 212.61 | 17.74 | 293.29 | 0.3275 | 1112.0 | 854.7 | |
| 0 | 5 | 0 | 2 | 12.74 | 212.33 | 17.47 | 299.32 | 0.3373 | 647.0 | 580.9 | |
| 0 | 7 | 0 | 4 | 12.40 | 211.28 | 16.41 | 299.85 | 0.3196 | -547.0 | -313.2 | |
| 0 | 5 | 0 | 3 | 11.26 | 210.23 | 15.36 | 298.02 | 0.2957 | -556.0 | -460.8 | |
| 12 | 40 | 6 | 21 | 13.05 | 210.18 | 15.31 | 303.33 | 0.3092 | -1506.4 | -892.2 | |
| 5 | -10 | 3 | -10 | 13.24 | 209.90 | 15.03 | 304.34 | 0.3072 | -1331.7 | 999999 | |
| 2 | 16 | 1 | 8 | 12.19 | 209.84 | 14.97 | 301.44 | 0.2973 | -1244.3 | -942.4 | |
| 0 | 19 | 0 | 10 | 10.88 | 209.69 | 14.82 | 297.65 | 0.2848 | -970.0 | -821.7 | |
| 0 | 6 | 0 | 3 | 11.93 | 209.30 | 14.43 | 301.55 | 0.2874 | -1045.0 | -839.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
