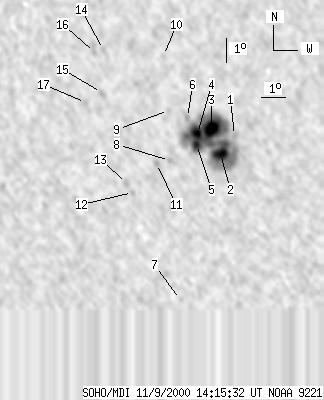

SOHO MDI 2000-11-09 14:15:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49 | 365 | 26 | 195 | -12.64 | 176.85 | -11.06 | 145.73 | 0.3348 | 1444.9 | 577.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-09 14:15:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -12.63 | 178.38 | -9.54 | 149.53 | 0.3203 | 329.0 | 382.4 | |
| 13 | 301 | 7 | 158 | -13.35 | 177.79 | -10.12 | 149.20 | 0.3355 | 1384.2 | 758.9 | |
| 21 | -2 | 11 | -2 | -12.36 | 177.47 | -10.44 | 146.75 | 0.3244 | 1895.1 | 999999 | |
| 9 | -2 | 5 | -2 | -12.56 | 176.90 | -11.01 | 145.71 | 0.3325 | 1603.3 | 999999 | |
| 6 | -2 | 3 | -2 | -13.00 | 176.84 | -11.07 | 146.32 | 0.3390 | 1072.2 | 999999 | |
| 0 | 4 | 0 | 2 | -11.93 | 176.53 | -11.39 | 143.68 | 0.3276 | 551.0 | 546.4 | |
| 0 | 3 | 0 | 2 | -19.34 | 175.81 | -12.11 | 152.79 | 0.4346 | -629.0 | -623.9 | |
| 0 | 3 | 0 | 2 | -13.66 | 175.72 | -12.19 | 144.86 | 0.3582 | 563.0 | 529.2 | |
| 0 | 5 | 0 | 3 | -11.66 | 175.78 | -12.14 | 141.41 | 0.3316 | 592.0 | 473.0 | |
| 0 | 3 | 0 | 2 | -9.48 | 175.67 | -12.25 | 136.58 | 0.3058 | -511.0 | -501.5 | |
| 0 | 5 | 0 | 3 | -13.79 | 175.19 | -12.73 | 143.92 | 0.3649 | 808.0 | 646.7 | |
| 0 | 3 | 0 | 2 | -14.97 | 174.14 | -13.78 | 143.69 | 0.3902 | -723.0 | -615.9 | |
| 0 | 7 | 0 | 4 | -14.61 | 173.92 | -14.00 | 142.68 | 0.3878 | -848.0 | -588.7 | |
| 0 | 5 | 0 | 3 | -9.28 | 173.27 | -14.64 | 131.03 | 0.3322 | -593.0 | -629.6 | |
| 0 | 6 | 0 | 3 | -10.98 | 173.11 | -14.80 | 134.44 | 0.3529 | -578.0 | -630.4 | |
| 0 | 12 | 0 | 6 | -9.41 | 172.90 | -15.01 | 130.62 | 0.3381 | -514.0 | -527.9 | |
| 0 | 3 | 0 | 2 | -11.39 | 172.44 | -15.48 | 134.01 | 0.3653 | -670.0 | -635.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
