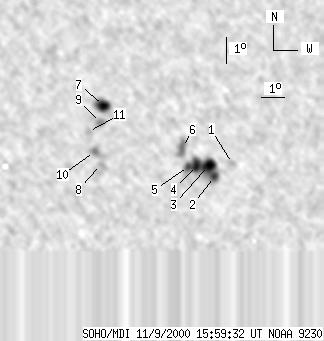

SOHO MDI 2000-11-09 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38 | 172 | 22 | 94 | 11.40 | 212.58 | 25.61 | 289.13 | 0.4504 | 549.1 | 311.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-09 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 10.83 | 215.42 | 28.46 | 286.31 | 0.4897 | 683.0 | 645.1 | |
| 3 | 84 | 2 | 47 | 10.35 | 214.58 | 27.62 | 285.71 | 0.4757 | 1116.1 | 927.9 | |
| 12 | -2 | 7 | -2 | 10.78 | 214.36 | 27.39 | 286.70 | 0.4739 | 1216.6 | 999999 | |
| 9 | -2 | 5 | -2 | 10.80 | 213.83 | 26.87 | 286.99 | 0.4661 | 1418.7 | 999999 | |
| 3 | -2 | 2 | -2 | 10.77 | 213.48 | 26.51 | 287.10 | 0.4608 | 1290.6 | 999999 | |
| 0 | 22 | 0 | 12 | 11.51 | 213.29 | 26.32 | 288.77 | 0.4609 | 1166.0 | 835.0 | |
| 11 | 26 | 6 | 14 | 13.22 | 210.03 | 23.07 | 294.74 | 0.4219 | -1205.5 | -812.4 | |
| 0 | 8 | 0 | 4 | 10.93 | 209.70 | 22.74 | 289.75 | 0.4049 | -934.0 | -749.5 | |
| 0 | 10 | 0 | 5 | 12.56 | 209.84 | 22.88 | 293.43 | 0.4154 | -1027.0 | -786.5 | |
| 0 | 12 | 0 | 6 | 11.44 | 209.49 | 22.52 | 291.11 | 0.4042 | -1176.0 | -892.4 | |
| 0 | 5 | 0 | 3 | 12.23 | 209.30 | 22.34 | 293.09 | 0.4055 | -962.0 | -875.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
