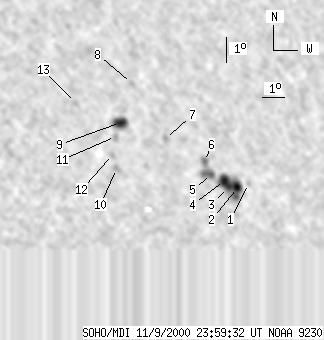

SOHO MDI 2000-11-09 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 145 | 16 | 84 | 11.78 | 212.55 | 29.98 | 287.72 | 0.5156 | 291.9 | 261.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-09 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 10.75 | 215.42 | 32.85 | 284.55 | 0.5527 | 555.0 | 492.0 | |
| 5 | 60 | 3 | 35 | 10.61 | 214.89 | 32.32 | 284.47 | 0.5449 | 987.8 | 890.9 | |
| 3 | -2 | 2 | -2 | 10.62 | 214.47 | 31.90 | 284.63 | 0.5390 | 1395.3 | 999999 | |
| 9 | -2 | 5 | -2 | 10.90 | 214.32 | 31.75 | 285.19 | 0.5376 | 1204.3 | 999999 | |
| 0 | 16 | 0 | 9 | 11.15 | 213.75 | 31.18 | 285.86 | 0.5302 | 1037.0 | 1019.9 | |
| 0 | 7 | 0 | 4 | 11.66 | 213.50 | 30.92 | 286.92 | 0.5282 | 591.0 | 664.2 | |
| 0 | 7 | 0 | 4 | 12.60 | 211.84 | 29.27 | 289.45 | 0.5081 | -483.0 | -417.4 | |
| 0 | 7 | 0 | 4 | 14.79 | 210.60 | 28.03 | 294.33 | 0.5006 | -627.0 | -545.7 | |
| 11 | 21 | 6 | 12 | 13.28 | 209.91 | 27.33 | 291.85 | 0.4835 | -1036.6 | -753.8 | |
| 0 | 7 | 0 | 4 | 11.50 | 209.53 | 26.96 | 288.47 | 0.4703 | -800.0 | -745.8 | |
| 0 | 6 | 0 | 4 | 12.74 | 209.62 | 27.05 | 290.95 | 0.4769 | -873.0 | -641.1 | |
| 0 | 5 | 0 | 3 | 12.05 | 209.41 | 26.84 | 289.66 | 0.4708 | -795.0 | -638.4 | |
| 0 | 5 | 0 | 3 | 14.11 | 208.02 | 25.45 | 294.81 | 0.4610 | -409.0 | -546.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
