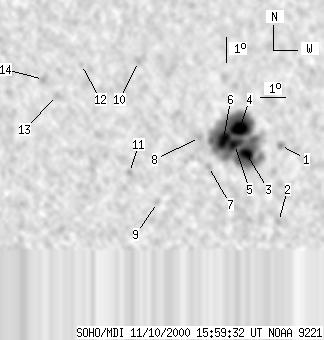

SOHO MDI 2000-11-10 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 364 | 29 | 190 | -12.69 | 176.90 | 3.11 | 190.73 | 0.2821 | 1511.1 | 575.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-10 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -12.95 | 179.10 | 5.31 | 197.92 | 0.2943 | -845.0 | -784.8 | |
| 0 | 5 | 0 | 3 | -16.02 | 179.09 | 5.30 | 195.08 | 0.3430 | -714.0 | -566.0 | |
| 12 | 317 | 6 | 164 | -13.27 | 177.76 | 3.97 | 193.34 | 0.2933 | 1284.8 | 728.5 | |
| 19 | -3 | 10 | -3 | -12.27 | 177.46 | 3.68 | 193.19 | 0.2759 | 1929.7 | 999999 | |
| 9 | -3 | 5 | -3 | -12.90 | 177.28 | 3.49 | 192.04 | 0.2856 | 1432.0 | 999999 | |
| 15 | -3 | 8 | -3 | -12.70 | 176.84 | 3.05 | 190.71 | 0.2809 | 1698.1 | 999999 | |
| 0 | 5 | 0 | 2 | -13.78 | 176.26 | 2.47 | 188.14 | 0.2972 | 590.0 | 569.3 | |
| 0 | 5 | 0 | 3 | -12.62 | 175.89 | 2.11 | 187.47 | 0.2770 | 907.0 | 691.3 | |
| 0 | 6 | 0 | 3 | -15.23 | 174.25 | 0.46 | 181.39 | 0.3185 | -733.0 | -646.9 | |
| 0 | 5 | 0 | 3 | -9.60 | 173.50 | -0.29 | 178.70 | 0.2235 | -839.0 | -766.8 | |
| 0 | 5 | 0 | 3 | -14.02 | 173.13 | -0.65 | 177.87 | 0.2984 | -762.0 | -635.8 | |
| 0 | 3 | 0 | 2 | -9.72 | 171.27 | -2.51 | 169.10 | 0.2296 | -662.0 | -558.8 | |
| 0 | 4 | 0 | 2 | -10.95 | 170.28 | -3.50 | 166.25 | 0.2536 | -852.0 | -744.7 | |
| 0 | 5 | 0 | 3 | -10.32 | 169.78 | -4.00 | 163.67 | 0.2455 | -619.0 | -424.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
