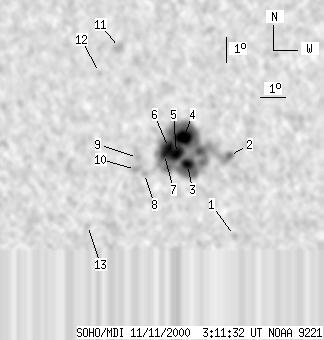

SOHO MDI 2000-11-11 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 411 | 29 | 214 | -12.67 | 177.15 | 9.51 | 210.58 | 0.3183 | 1567.2 | 509.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-11 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -16.17 | 179.65 | 12.01 | 211.16 | 0.3878 | -726.0 | -661.9 | |
| 0 | 21 | 0 | 11 | -12.94 | 179.27 | 11.63 | 215.36 | 0.3409 | -1275.0 | -740.6 | |
| 9 | 349 | 5 | 182 | -13.28 | 177.60 | 9.96 | 210.75 | 0.3306 | 1282.4 | 655.1 | |
| 16 | -3 | 9 | -3 | -12.20 | 177.39 | 9.75 | 212.03 | 0.3136 | 1929.1 | 999999 | |
| 13 | -3 | 7 | -3 | -12.84 | 177.14 | 9.50 | 210.29 | 0.3204 | 1513.7 | 999999 | |
| 10 | -3 | 5 | -3 | -12.59 | 176.81 | 9.17 | 209.82 | 0.3142 | 1908.8 | 999999 | |
| 5 | -3 | 3 | -3 | -12.87 | 176.66 | 9.02 | 208.97 | 0.3170 | 1471.1 | 999999 | |
| 0 | 4 | 0 | 2 | -13.63 | 175.89 | 8.25 | 205.77 | 0.3222 | 730.0 | 635.0 | |
| 0 | 5 | 0 | 3 | -12.98 | 175.59 | 7.95 | 205.85 | 0.3104 | 888.0 | 753.4 | |
| 0 | 8 | 0 | 4 | -13.46 | 175.52 | 7.88 | 205.00 | 0.3171 | 879.0 | 703.8 | |
| 0 | 12 | 0 | 6 | -8.62 | 174.77 | 7.13 | 210.98 | 0.2394 | -828.0 | -744.8 | |
| 0 | 3 | 0 | 1 | -9.60 | 174.00 | 6.36 | 206.30 | 0.2478 | -791.0 | -707.3 | |
| 0 | 4 | 0 | 2 | -15.71 | 173.68 | 6.04 | 197.37 | 0.3407 | -732.0 | -583.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
