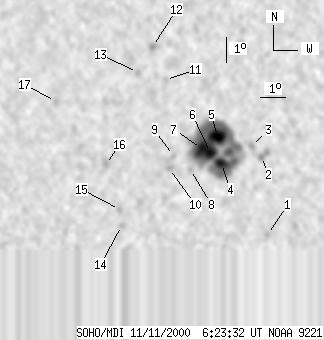

SOHO MDI 2000-11-11 06:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 397 | 30 | 209 | -12.70 | 176.90 | 11.02 | 214.29 | 0.3323 | 1489.0 | 507.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-11 06:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -16.17 | 179.65 | 13.77 | 214.73 | 0.4030 | -785.0 | -641.5 | |
| 0 | 10 | 0 | 5 | -13.01 | 179.21 | 13.32 | 218.98 | 0.3585 | -1060.0 | -867.3 | |
| 0 | 6 | 0 | 3 | -12.57 | 178.78 | 12.90 | 218.89 | 0.3485 | -545.0 | -347.8 | |
| 11 | 326 | 6 | 171 | -13.27 | 177.60 | 11.72 | 215.02 | 0.3460 | 1217.4 | 715.3 | |
| 18 | -4 | 10 | -4 | -12.19 | 177.39 | 11.51 | 216.45 | 0.3297 | 1873.6 | 999999 | |
| 11 | -4 | 6 | -4 | -12.83 | 177.14 | 11.26 | 214.71 | 0.3357 | 1510.7 | 999999 | |
| 15 | -4 | 8 | -4 | -12.66 | 176.77 | 10.89 | 214.12 | 0.3301 | 1820.6 | 999999 | |
| 0 | 4 | 0 | 2 | -13.50 | 176.37 | 10.48 | 211.73 | 0.3379 | 508.0 | 422.8 | |
| 0 | 3 | 0 | 2 | -12.93 | 175.66 | 9.78 | 210.89 | 0.3239 | 913.0 | 794.4 | |
| 0 | 6 | 0 | 3 | -13.45 | 175.52 | 9.64 | 209.70 | 0.3301 | 820.0 | 722.3 | |
| 0 | 2 | 0 | 1 | -9.91 | 175.24 | 9.36 | 215.35 | 0.2781 | -574.0 | -538.0 | |
| 0 | 5 | 0 | 3 | -8.61 | 174.69 | 8.81 | 216.63 | 0.2550 | -975.0 | -907.8 | |
| 0 | 4 | 0 | 2 | -9.63 | 174.13 | 8.25 | 212.60 | 0.2636 | -751.0 | -615.0 | |
| 0 | 5 | 0 | 3 | -15.73 | 173.69 | 7.80 | 201.99 | 0.3506 | -809.0 | -641.8 | |
| 0 | 4 | 0 | 2 | -15.09 | 173.58 | 7.70 | 202.46 | 0.3401 | -768.0 | -638.0 | |
| 0 | 11 | 0 | 6 | -13.27 | 172.96 | 7.08 | 202.99 | 0.3086 | -815.0 | -650.1 | |
| 0 | 6 | 0 | 3 | -10.75 | 170.93 | 5.05 | 199.77 | 0.2568 | -807.0 | -623.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
