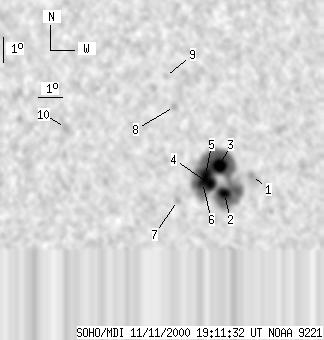

SOHO MDI 2000-11-11 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 335 | 28 | 182 | -12.55 | 176.96 | 18.11 | 228.57 | 0.4062 | 1523.0 | 561.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-11 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 14 | 0 | 8 | -12.57 | 178.68 | 19.83 | 231.08 | 0.4273 | -384.0 | -493.9 | |
| 10 | 299 | 5 | 162 | -13.27 | 177.61 | 18.75 | 228.24 | 0.4213 | 1292.0 | 676.3 | |
| 15 | -2 | 8 | -2 | -12.15 | 177.32 | 18.46 | 229.91 | 0.4064 | 1799.5 | 999999 | |
| 11 | -2 | 6 | -2 | -12.90 | 177.00 | 18.14 | 228.00 | 0.4102 | 1217.8 | 999999 | |
| 17 | -2 | 9 | -2 | -12.54 | 176.76 | 17.91 | 228.31 | 0.4037 | 1813.8 | 999999 | |
| -5 | -2 | -5 | -2 | -12.81 | 176.66 | 17.80 | 227.63 | 0.4053 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | -13.52 | 175.68 | 16.82 | 224.73 | 0.4016 | 802.0 | 695.5 | |
| 0 | 5 | 0 | 3 | -9.78 | 175.32 | 16.47 | 231.65 | 0.3578 | -738.0 | -576.1 | |
| 0 | 4 | 0 | 2 | -8.59 | 174.90 | 16.05 | 233.68 | 0.3407 | -701.0 | -583.1 | |
| 0 | 8 | 0 | 4 | -10.55 | 170.97 | 12.11 | 221.27 | 0.3142 | -576.0 | -666.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
