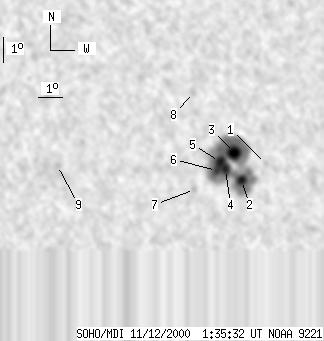

SOHO MDI 2000-11-12 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48 | 309 | 27 | 171 | -12.55 | 176.93 | 21.59 | 233.46 | 0.4488 | 1473.6 | 611.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-12 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -12.60 | 178.69 | 23.34 | 235.48 | 0.4714 | -617.0 | -539.2 | |
| 6 | 287 | 4 | 159 | -13.25 | 177.72 | 22.38 | 233.18 | 0.4649 | 1246.6 | 675.6 | |
| 15 | -2 | 8 | -2 | -12.13 | 177.32 | 21.98 | 234.75 | 0.4500 | 1693.1 | 999999 | |
| 11 | -2 | 6 | -2 | -12.80 | 177.00 | 21.66 | 233.12 | 0.4519 | 1191.6 | 999999 | |
| 11 | -2 | 6 | -2 | -12.47 | 176.72 | 21.38 | 233.36 | 0.4454 | 1871.5 | 999999 | |
| 5 | -2 | 3 | -2 | -12.83 | 176.62 | 21.28 | 232.58 | 0.4474 | 1438.6 | 999999 | |
| 0 | 5 | 0 | 3 | -13.57 | 175.76 | 20.42 | 230.11 | 0.4439 | 614.0 | 518.8 | |
| 0 | 7 | 0 | 4 | -9.72 | 175.42 | 20.08 | 237.16 | 0.4045 | -681.0 | -509.9 | |
| 0 | 6 | 0 | 3 | -12.52 | 170.01 | 14.67 | 222.77 | 0.3657 | -608.0 | -428.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
