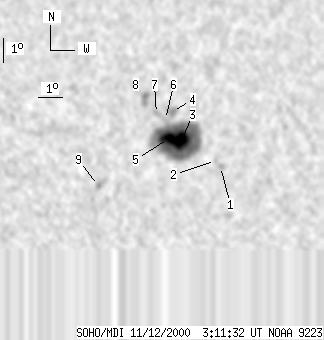

SOHO MDI 2000-11-12 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35 | 279 | 19 | 150 | -16.23 | 164.01 | 9.54 | 205.76 | 0.3681 | -1676.3 | -576.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-12 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -17.45 | 166.02 | 11.55 | 208.64 | 0.4003 | 652.0 | 500.3 | |
| 0 | 3 | 0 | 2 | -17.21 | 165.79 | 11.33 | 208.49 | 0.3951 | 532.0 | 425.2 | |
| 18 | 228 | 10 | 122 | -16.37 | 164.36 | 9.89 | 206.39 | 0.3726 | -1704.9 | -637.8 | |
| 0 | 14 | 0 | 7 | -15.19 | 163.94 | 9.47 | 206.92 | 0.3524 | -1104.0 | -886.0 | |
| 17 | -3 | 9 | -3 | -16.29 | 163.83 | 9.36 | 205.26 | 0.3676 | -1871.7 | 999999 | |
| 0 | 4 | 0 | 2 | -15.51 | 163.67 | 9.20 | 205.84 | 0.3552 | -891.0 | -813.4 | |
| 0 | 7 | 0 | 4 | -15.27 | 163.30 | 8.83 | 205.24 | 0.3489 | -501.0 | -461.0 | |
| 0 | 13 | 0 | 7 | -14.54 | 162.82 | 8.36 | 204.98 | 0.3348 | 686.0 | 110.5 | |
| 0 | 5 | 0 | 3 | -18.19 | 161.07 | 6.60 | 196.77 | 0.3802 | -880.0 | -679.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
