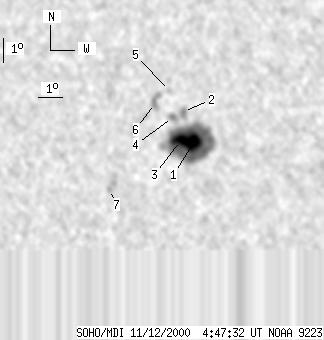

SOHO MDI 2000-11-12 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38 | 278 | 20 | 149 | -16.30 | 163.78 | 10.20 | 207.20 | 0.3740 | -1652.4 | -557.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-12 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 220 | 11 | 118 | -16.39 | 164.38 | 10.80 | 208.41 | 0.3795 | -1612.0 | -610.3 | |
| 0 | 8 | 0 | 4 | -15.13 | 163.91 | 10.33 | 209.05 | 0.3580 | -992.0 | -910.8 | |
| 17 | -1 | 9 | -1 | -16.31 | 163.85 | 10.26 | 207.33 | 0.3742 | -1837.0 | 999999 | |
| 0 | 7 | 0 | 4 | -15.37 | 163.48 | 9.89 | 207.70 | 0.3580 | -1080.0 | -921.7 | |
| 0 | 4 | 0 | 2 | -14.28 | 163.31 | 9.72 | 208.82 | 0.3410 | 627.0 | 553.6 | |
| 0 | 19 | 0 | 10 | -14.79 | 162.73 | 9.14 | 206.64 | 0.3441 | 107.0 | 109.8 | |
| 0 | 20 | 0 | 11 | -18.29 | 161.06 | 7.47 | 198.74 | 0.3859 | -837.0 | -542.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
