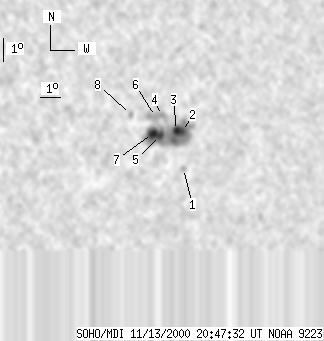

SOHO MDI 2000-11-13 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 158 | 16 | 98 | -16.25 | 164.22 | 32.59 | 238.23 | 0.6105 | -1060.2 | -465.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-13 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -17.81 | 165.52 | 33.89 | 236.97 | 0.6356 | 642.0 | 527.1 | |
| 3 | 127 | 2 | 79 | -16.29 | 165.16 | 33.53 | 238.86 | 0.6218 | -846.3 | -481.5 | |
| 6 | -2 | 4 | -2 | -16.24 | 164.86 | 33.23 | 238.72 | 0.6180 | -996.4 | 999999 | |
| 0 | 7 | 0 | 4 | -15.61 | 164.03 | 32.40 | 239.04 | 0.6041 | -1060.0 | -923.9 | |
| 6 | -2 | 4 | -2 | -16.42 | 164.13 | 32.50 | 237.92 | 0.6106 | -914.4 | 999999 | |
| 0 | 14 | 0 | 9 | -15.64 | 163.75 | 32.12 | 238.78 | 0.6010 | -736.0 | -726.8 | |
| 9 | -2 | 6 | -2 | -16.33 | 163.73 | 32.11 | 237.76 | 0.6053 | -1393.1 | 999999 | |
| 0 | 5 | 0 | 3 | -15.53 | 162.56 | 30.93 | 238.04 | 0.5860 | 572.0 | 367.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
