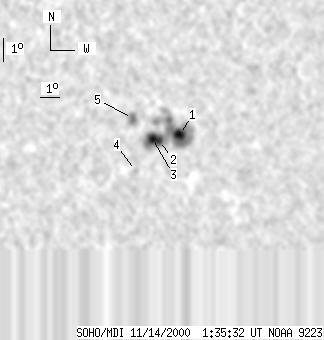

SOHO MDI 2000-11-14 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 188 | 13 | 121 | -16.30 | 164.19 | 35.19 | 240.00 | 0.6411 | -993.7 | -473.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-14 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 171 | 5 | 110 | -16.22 | 165.05 | 36.05 | 240.66 | 0.6506 | -906.9 | -544.8 | |
| 5 | -1 | 3 | -1 | -16.44 | 164.11 | 35.11 | 239.75 | 0.6410 | -762.2 | 999999 | |
| 7 | -1 | 5 | -1 | -16.35 | 163.74 | 34.75 | 239.64 | 0.6362 | -1306.1 | 999999 | |
| 0 | 4 | 0 | 3 | -17.63 | 163.19 | 34.19 | 237.45 | 0.6377 | -502.0 | -380.4 | |
| 0 | 13 | 0 | 8 | -15.50 | 162.61 | 33.62 | 240.09 | 0.6178 | 682.0 | 469.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
