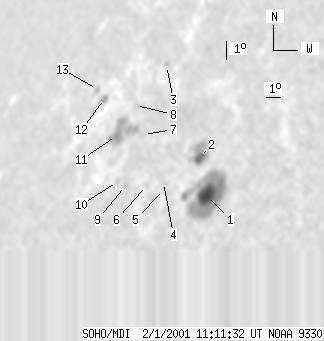

SOHO MDI 2001-02-01 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42 | 374 | 35 | 331 | 25.11 | 114.86 | -48.04 | 54.14 | 0.8305 | 826.5 | 183.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-01 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 216 | 23 | 179 | 23.76 | 117.48 | -45.41 | 54.32 | 0.8048 | 1227.2 | 486.1 | |
| 10 | 48 | 8 | 41 | 25.53 | 116.20 | -46.69 | 53.06 | 0.8237 | 729.3 | 153.5 | |
| 0 | 5 | 0 | 5 | 30.14 | 111.16 | -51.73 | 50.71 | 0.8793 | -374.0 | -240.0 | |
| 0 | 4 | 0 | 4 | 24.58 | 114.42 | -48.47 | 54.99 | 0.8334 | 184.0 | 186.9 | |
| 0 | 7 | 0 | 6 | 24.26 | 114.59 | -48.30 | 55.25 | 0.8307 | 323.0 | 339.1 | |
| 0 | 2 | 0 | 2 | 24.54 | 113.35 | -49.55 | 55.55 | 0.8416 | 84.0 | 24.8 | |
| 0 | 5 | 0 | 5 | 26.94 | 111.74 | -51.15 | 53.75 | 0.8631 | -171.0 | -147.3 | |
| 0 | 3 | 0 | 3 | 28.38 | 110.20 | -52.69 | 52.93 | 0.8791 | -443.0 | -432.2 | |
| 0 | 4 | 0 | 3 | 24.66 | 111.88 | -51.01 | 56.08 | 0.8533 | -399.0 | -432.0 | |
| 0 | 3 | 0 | 3 | 24.90 | 111.20 | -51.69 | 56.13 | 0.8593 | -691.0 | -631.9 | |
| 4 | 63 | 4 | 64 | 27.07 | 109.75 | -53.15 | 54.48 | 0.8774 | -781.7 | -417.6 | |
| 0 | 10 | 0 | 11 | 28.95 | 107.44 | -55.45 | 53.49 | 0.8986 | -164.0 | -179.0 | |
| 0 | 4 | 0 | 5 | 29.45 | 106.47 | -56.42 | 53.36 | 0.9059 | -108.0 | -90.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
