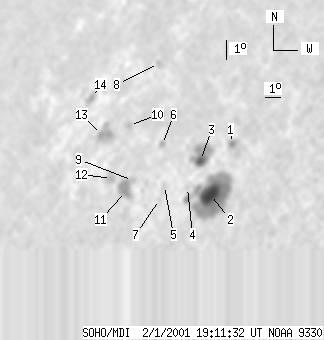

SOHO MDI 2001-02-01 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42 | 385 | 33 | 312 | 24.80 | 115.22 | -43.29 | 51.91 | 0.7912 | 1017.9 | 213.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-01 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 9 | 2 | 7 | 25.99 | 117.81 | -40.69 | 49.11 | 0.7776 | -491.4 | -374.5 | |
| 30 | 213 | 23 | 164 | 23.76 | 117.48 | -41.03 | 51.77 | 0.7672 | 1334.4 | 569.0 | |
| 10 | 51 | 8 | 41 | 25.34 | 116.26 | -42.24 | 50.76 | 0.7867 | 778.1 | 177.6 | |
| 0 | 2 | 0 | 2 | 24.17 | 116.01 | -42.49 | 52.20 | 0.7823 | 400.0 | 383.8 | |
| 0 | 3 | 0 | 2 | 24.37 | 114.59 | -43.91 | 52.80 | 0.7954 | 372.0 | 363.3 | |
| 0 | 5 | 0 | 5 | 26.27 | 113.59 | -44.91 | 51.31 | 0.8134 | 253.0 | 188.6 | |
| 0 | 2 | 0 | 2 | 23.76 | 114.57 | -43.94 | 53.49 | 0.7924 | 463.0 | 420.3 | |
| 0 | 6 | 0 | 5 | 30.17 | 111.14 | -47.36 | 48.56 | 0.8505 | -180.0 | -194.8 | |
| 0 | 5 | 0 | 4 | 24.75 | 112.50 | -46.00 | 53.53 | 0.8146 | 229.0 | 48.2 | |
| 0 | 5 | 0 | 4 | 27.33 | 110.96 | -47.54 | 51.58 | 0.8387 | 278.0 | 189.1 | |
| 0 | 32 | 0 | 27 | 24.29 | 112.30 | -46.20 | 54.14 | 0.8140 | -330.0 | -275.2 | |
| 0 | 10 | 0 | 9 | 24.96 | 111.10 | -47.40 | 54.04 | 0.8268 | -935.0 | -764.8 | |
| 0 | 30 | 0 | 28 | 27.07 | 109.29 | -49.21 | 52.69 | 0.8498 | -707.0 | -615.3 | |
| 0 | 12 | 0 | 12 | 28.91 | 107.43 | -51.07 | 51.65 | 0.8704 | -366.0 | -258.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
