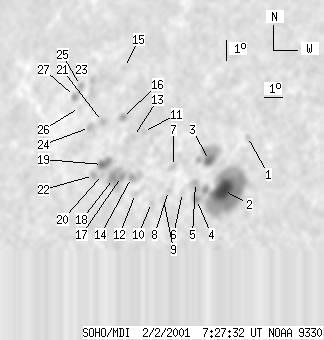

SOHO MDI 2001-02-02 07:27:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52 | 467 | 39 | 344 | 24.88 | 114.50 | -37.27 | 47.88 | 0.7404 | 644.4 | 210.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-02 07:27:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 26.07 | 117.97 | -33.80 | 44.07 | 0.7207 | -548.0 | -415.9 | |
| 27 | 206 | 19 | 144 | 23.70 | 117.49 | -34.28 | 47.06 | 0.7068 | 1491.2 | 655.0 | |
| 7 | 54 | 5 | 39 | 25.10 | 116.32 | -35.44 | 46.40 | 0.7275 | 873.9 | 244.2 | |
| 3 | 9 | 2 | 6 | 23.39 | 116.20 | -35.56 | 48.40 | 0.7162 | 779.6 | 649.4 | |
| 0 | 12 | 0 | 9 | 24.16 | 115.91 | -35.86 | 47.76 | 0.7243 | 514.0 | 555.8 | |
| 0 | 3 | 0 | 2 | 23.75 | 115.36 | -36.40 | 48.62 | 0.7264 | 338.0 | 337.6 | |
| 0 | 6 | 0 | 5 | 24.96 | 114.48 | -37.29 | 47.91 | 0.7425 | 341.0 | 352.6 | |
| 0 | 4 | 0 | 3 | 23.89 | 114.58 | -37.19 | 49.02 | 0.7343 | 614.0 | 450.9 | |
| 0 | 3 | 0 | 2 | 23.51 | 114.45 | -37.32 | 49.55 | 0.7329 | 475.0 | 372.1 | |
| 0 | 7 | 0 | 5 | 23.42 | 113.84 | -37.93 | 50.08 | 0.7378 | 513.0 | 371.1 | |
| 0 | 3 | 0 | 2 | 26.69 | 112.17 | -39.60 | 47.62 | 0.7732 | -375.0 | -373.0 | |
| 0 | 5 | 0 | 4 | 23.89 | 112.82 | -38.95 | 50.25 | 0.7499 | 407.0 | 339.4 | |
| 0 | 5 | 0 | 4 | 26.50 | 111.69 | -40.08 | 48.14 | 0.7760 | -368.0 | -352.5 | |
| 0 | 16 | 0 | 12 | 24.63 | 112.33 | -39.44 | 49.76 | 0.7589 | 233.0 | 183.9 | |
| 0 | 7 | 0 | 6 | 29.82 | 109.61 | -42.16 | 45.99 | 0.8120 | -379.0 | -311.1 | |
| 1 | 8 | 1 | 6 | 27.44 | 110.65 | -41.11 | 47.81 | 0.7900 | 194.5 | 207.5 | |
| 2 | 41 | 2 | 31 | 24.71 | 111.74 | -40.02 | 50.04 | 0.7645 | 267.9 | -367.3 | |
| 7 | -17 | 6 | -17 | 24.65 | 111.32 | -40.44 | 50.38 | 0.7677 | -641.1 | 999999 | |
| 4 | 21 | 3 | 17 | 25.34 | 110.43 | -41.34 | 50.19 | 0.7794 | -914.4 | -775.1 | |
| 0 | 2 | 0 | 2 | 24.88 | 110.62 | -41.15 | 50.57 | 0.7751 | -815.0 | -850.8 | |
| 0 | 5 | 0 | 4 | 27.34 | 109.54 | -42.23 | 48.60 | 0.7982 | -732.0 | -652.7 | |
| 0 | 6 | 0 | 5 | 24.88 | 110.11 | -41.66 | 50.89 | 0.7794 | -854.0 | -736.7 | |
| 0 | 18 | 0 | 16 | 29.35 | 107.92 | -43.85 | 47.47 | 0.8217 | -474.0 | -451.7 | |
| 0 | 7 | 0 | 6 | 27.12 | 108.88 | -42.89 | 49.23 | 0.8022 | -555.0 | -543.6 | |
| 0 | 6 | 0 | 5 | 29.17 | 107.28 | -44.49 | 48.02 | 0.8254 | -135.0 | -230.8 | |
| 0 | 2 | 0 | 1 | 28.11 | 107.78 | -43.98 | 48.82 | 0.8161 | -489.0 | -485.4 | |
| 1 | 6 | 1 | 5 | 28.67 | 107.18 | -44.58 | 48.59 | 0.8235 | -365.0 | -316.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
