group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9330	60	567	40	383	24.94	114.22	-30.06	41.94	0.6791	637.7	179.8

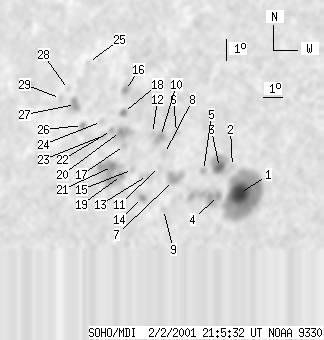

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2001-02-02 21:05:32 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	29	216	19	139	23.69	117.40	-26.88	40.40	0.6412	1496.2	668.9
2	0	4	0	2	24.91	116.78	-27.50	39.69	0.6581	168.0	265.0
3	11	40	7	26	24.90	116.16	-28.12	40.30	0.6632	859.2	322.6
4	0	48	0	31	23.65	116.42	-27.86	41.42	0.6494	863.0	728.5
5	0	4	0	3	24.81	115.42	-28.87	41.12	0.6687	403.0	293.9
6	0	4	0	3	26.62	113.59	-30.70	40.86	0.6999	-741.0	-583.9
7	0	24	0	16	24.44	114.05	-30.23	42.78	0.6772	677.0	478.7
8	0	7	0	5	25.69	113.26	-31.02	42.13	0.6947	-491.0	-405.0
9	0	3	0	2	23.18	113.90	-30.39	44.34	0.6677	395.0	396.7
10	0	17	0	12	26.49	112.83	-31.46	41.67	0.7050	-529.0	-282.5
11	0	2	0	1	25.12	113.18	-31.10	42.82	0.6905	335.0	222.3
12	0	4	0	3	26.65	112.37	-31.91	41.88	0.7101	-445.0	-304.0
13	0	10	0	7	24.75	112.69	-31.59	43.65	0.6916	521.0	405.7
14	2	13	1	9	23.77	112.71	-31.57	44.71	0.6834	637.0	409.7
15	0	4	0	3	25.06	111.85	-32.43	44.02	0.7015	211.0	188.7
16	1	9	1	7	28.75	110.25	-34.03	41.44	0.7437	-924.0	-773.7
17	0	5	0	4	26.19	111.09	-33.19	43.43	0.7169	-392.0	-504.4
18	3	8	2	6	27.72	110.52	-33.76	42.28	0.7336	289.9	185.6
19	2	70	1	49	24.83	111.36	-32.92	44.68	0.7038	369.9	-434.3
20	3	27	2	20	26.85	110.67	-33.61	43.08	0.7256	-1157.5	-837.4
21	5	-19	4	-19	25.26	110.77	-33.51	44.68	0.7124	-422.0	999999
22	0	5	0	3	26.92	110.17	-34.11	43.39	0.7302	-814.0	-708.6
23	0	5	0	4	26.72	109.83	-34.45	43.87	0.7315	-696.0	-640.4
24	0	5	0	3	27.38	109.49	-34.79	43.44	0.7392	-498.0	-510.6
25	0	2	0	2	30.24	107.65	-36.63	41.90	0.7743	-335.0	-369.2
26	0	6	0	4	27.26	108.53	-35.76	44.30	0.7461	-770.0	-692.4
27	4	19	3	14	28.27	107.76	-36.53	43.81	0.7596	-823.0	-597.1
28	0	3	0	2	29.01	107.07	-37.21	43.54	0.7701	-207.0	-209.2
29	0	3	0	3	28.62	106.79	-37.49	44.14	0.7695	-521.0	-445.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
