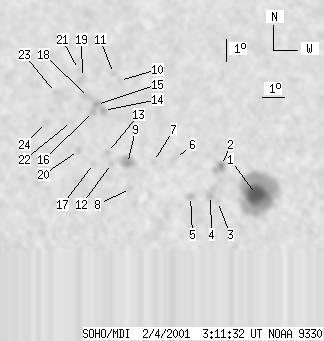

SOHO MDI 2001-02-04 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39 | 366 | 23 | 219 | 24.72 | 114.45 | -13.31 | 21.88 | 0.5549 | 1223.4 | 294.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-04 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 198 | 19 | 115 | 23.45 | 117.27 | -10.48 | 18.70 | 0.5227 | 1645.4 | 617.1 | |
| 3 | 18 | 2 | 10 | 24.78 | 115.65 | -12.10 | 20.37 | 0.5490 | 781.4 | 650.1 | |
| 0 | 3 | 0 | 2 | 23.18 | 115.64 | -12.12 | 21.56 | 0.5273 | 641.0 | 652.4 | |
| 0 | 15 | 0 | 9 | 23.45 | 115.31 | -12.45 | 21.87 | 0.5328 | 1098.0 | 812.5 | |
| 0 | 6 | 0 | 3 | 23.43 | 114.46 | -13.30 | 23.23 | 0.5374 | 998.0 | 781.5 | |
| 0 | 6 | 0 | 4 | 25.14 | 113.61 | -14.14 | 23.15 | 0.5648 | 613.0 | 503.1 | |
| 0 | 5 | 0 | 3 | 25.04 | 112.66 | -15.09 | 24.60 | 0.5690 | 613.0 | 488.8 | |
| 0 | 8 | 0 | 5 | 23.86 | 111.81 | -15.95 | 26.81 | 0.5593 | 361.0 | 185.0 | |
| 4 | 19 | 2 | 11 | 24.98 | 111.53 | -16.23 | 26.24 | 0.5752 | 754.7 | 486.9 | |
| 0 | 4 | 0 | 3 | 28.82 | 110.58 | -17.18 | 24.43 | 0.6280 | -824.0 | -686.0 | |
| 0 | 3 | 0 | 2 | 29.16 | 110.25 | -17.51 | 24.58 | 0.6339 | -552.0 | -461.9 | |
| 0 | 3 | 0 | 2 | 25.01 | 110.82 | -16.94 | 27.19 | 0.5801 | -545.0 | -380.2 | |
| 0 | 4 | 0 | 3 | 25.51 | 110.57 | -17.19 | 27.10 | 0.5879 | 283.0 | 207.0 | |
| 0 | 6 | 0 | 4 | 27.44 | 110.08 | -17.67 | 26.12 | 0.6143 | -863.0 | -838.8 | |
| 0 | 8 | 0 | 5 | 27.73 | 109.72 | -18.04 | 26.35 | 0.6200 | -920.0 | -817.6 | |
| 0 | 5 | 0 | 3 | 27.41 | 109.63 | -18.12 | 26.71 | 0.6167 | -1028.0 | -933.1 | |
| 0 | 5 | 0 | 3 | 25.04 | 110.01 | -17.74 | 28.24 | 0.5857 | -733.0 | -575.2 | |
| 0 | 14 | 0 | 9 | 28.07 | 109.29 | -18.47 | 26.60 | 0.6266 | -749.0 | -644.7 | |
| 0 | 10 | 0 | 7 | 29.02 | 108.84 | -18.92 | 26.38 | 0.6405 | -622.0 | -577.7 | |
| 0 | 5 | 0 | 3 | 25.65 | 109.25 | -18.51 | 28.70 | 0.5982 | -660.0 | -514.9 | |
| 0 | 5 | 0 | 3 | 29.41 | 108.58 | -19.18 | 26.38 | 0.6465 | -320.0 | -467.8 | |
| 0 | 3 | 0 | 2 | 26.99 | 108.71 | -19.05 | 28.21 | 0.6176 | -773.0 | -677.4 | |
| 0 | 3 | 0 | 2 | 28.36 | 107.71 | -20.05 | 28.24 | 0.6398 | -561.0 | -552.3 | |
| 0 | 10 | 0 | 6 | 26.99 | 107.52 | -20.24 | 29.65 | 0.6255 | -750.0 | -569.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
