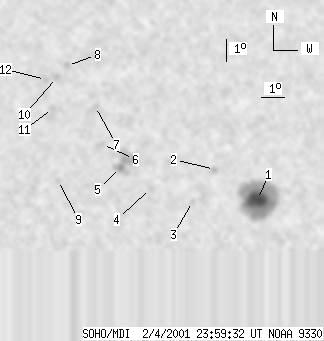

SOHO MDI 2001-02-04 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 289 | 16 | 166 | 24.33 | 114.54 | -1.80 | 3.25 | 0.5096 | 1286.5 | 397.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-04 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25 | 177 | 14 | 101 | 23.33 | 117.10 | 0.76 | 358.59 | 0.4959 | 1579.9 | 670.8 | |
| 0 | 5 | 0 | 3 | 24.66 | 115.29 | -1.05 | 1.86 | 0.5162 | 647.0 | 504.7 | |
| 0 | 5 | 0 | 3 | 23.24 | 114.38 | -1.96 | 3.65 | 0.4954 | 755.0 | 652.4 | |
| 0 | 4 | 0 | 2 | 23.83 | 112.61 | -3.73 | 6.77 | 0.5067 | 620.0 | 545.4 | |
| 3 | 47 | 2 | 27 | 24.78 | 111.31 | -5.03 | 8.78 | 0.5234 | 791.6 | 469.6 | |
| 0 | 8 | 0 | 5 | 25.82 | 110.49 | -5.84 | 9.80 | 0.5407 | -677.0 | -716.0 | |
| 0 | 5 | 0 | 3 | 27.57 | 110.10 | -6.24 | 9.83 | 0.5666 | -637.0 | -502.6 | |
| 0 | 5 | 0 | 3 | 29.50 | 108.74 | -7.60 | 11.16 | 0.5972 | -448.0 | -382.1 | |
| 0 | 5 | 0 | 3 | 24.23 | 108.71 | -7.63 | 13.45 | 0.5229 | -615.0 | -517.0 | |
| 0 | 7 | 0 | 4 | 28.95 | 108.29 | -8.05 | 12.01 | 0.5908 | -754.0 | -673.8 | |
| 0 | 17 | 0 | 10 | 27.50 | 108.23 | -8.11 | 12.71 | 0.5710 | -785.0 | -699.9 | |
| 0 | 4 | 0 | 2 | 28.86 | 107.81 | -8.53 | 12.74 | 0.5910 | -826.0 | -741.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
