SOHO MDI 2001-02-05 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 278 | 14 | 160 | 24.06 | 114.94 | -0.52 | 0.94 | 0.5051 | 1377.7 | 484.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-05 01:35:32 UT |

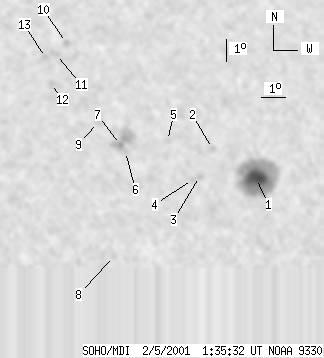

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 183 | 14 | 104 | 23.28 | 117.05 | 1.59 | 357.04 | 0.4958 | 1586.7 | 666.6 | |
| 0 | 5 | 0 | 3 | 24.61 | 115.21 | -0.25 | 0.44 | 0.5153 | 629.0 | 468.3 | |
| 0 | 5 | 0 | 3 | 23.37 | 114.67 | -0.79 | 1.47 | 0.4967 | 924.0 | 790.3 | |
| 0 | 4 | 0 | 2 | 23.24 | 114.38 | -1.08 | 2.02 | 0.4948 | 769.0 | 605.7 | |
| 0 | 4 | 0 | 3 | 24.98 | 113.30 | -2.15 | 3.76 | 0.5218 | 633.0 | 534.2 | |
| 0 | 2 | 0 | 1 | 24.49 | 111.54 | -3.92 | 6.94 | 0.5171 | 788.0 | 686.2 | |
| 0 | 38 | 0 | 22 | 24.81 | 111.32 | -4.14 | 7.24 | 0.5222 | 956.0 | 524.7 | |
| 0 | 5 | 0 | 3 | 19.91 | 111.18 | -4.28 | 9.05 | 0.4483 | 630.0 | 495.7 | |
| 0 | 7 | 0 | 4 | 25.81 | 110.30 | -5.16 | 8.67 | 0.5390 | -550.0 | -655.4 | |
| 0 | 5 | 0 | 3 | 29.54 | 108.74 | -6.72 | 9.88 | 0.5954 | -430.0 | -405.5 | |
| 0 | 9 | 0 | 5 | 28.98 | 108.34 | -7.12 | 10.66 | 0.5887 | -790.0 | -660.5 | |
| 0 | 7 | 0 | 4 | 27.63 | 108.21 | -7.25 | 11.35 | 0.5702 | -807.0 | -667.3 | |
| 0 | 4 | 0 | 3 | 28.84 | 107.86 | -7.60 | 11.40 | 0.5881 | -853.0 | -768.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
