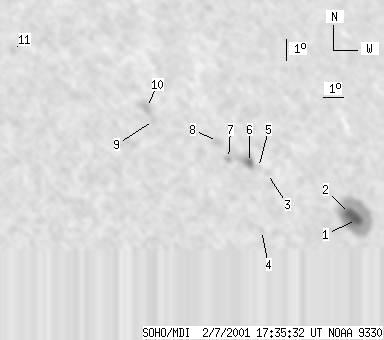

SOHO MDI 2001-02-07 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 223 | 19 | 156 | 23.73 | 114.00 | 33.68 | 313.84 | 0.7064 | 817.7 | 277.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-02-07 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 140 | 8 | 100 | 22.62 | 116.53 | 36.20 | 310.49 | 0.7193 | 989.6 | 398.5 | |
| 8 | -1 | 6 | -1 | 22.86 | 116.24 | 35.92 | 310.98 | 0.7184 | 960.2 | 999999 | |
| 0 | 5 | 0 | 3 | 24.37 | 112.53 | 32.21 | 315.63 | 0.6967 | 482.0 | 368.0 | |
| 0 | 5 | 0 | 4 | 21.81 | 111.56 | 31.23 | 313.57 | 0.6669 | 559.0 | 386.8 | |
| 0 | 2 | 0 | 1 | 24.61 | 112.15 | 31.83 | 316.22 | 0.6954 | 516.0 | 486.2 | |
| 7 | 27 | 5 | 18 | 24.81 | 111.76 | 31.44 | 316.77 | 0.6936 | 622.0 | 480.3 | |
| 0 | 7 | 0 | 5 | 24.93 | 110.76 | 30.43 | 317.79 | 0.6860 | 776.0 | 703.8 | |
| 0 | 10 | 0 | 7 | 25.67 | 110.42 | 30.10 | 318.88 | 0.6897 | 364.0 | 328.8 | |
| 0 | 5 | 0 | 3 | 26.45 | 107.51 | 27.19 | 322.43 | 0.6733 | -934.0 | -860.1 | |
| 0 | 16 | 0 | 11 | 27.03 | 107.32 | 27.00 | 323.20 | 0.6774 | -854.0 | -846.0 | |
| 0 | 6 | 0 | 4 | 29.39 | 101.48 | 21.16 | 331.48 | 0.6610 | -628.0 | -566.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
