groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9632 249 1719 165 1128 -18.49 274.13 -32.31 129.13 0.6555 -778.0 -198.8


previous   or   next   observation for the same group / back to the solar disc

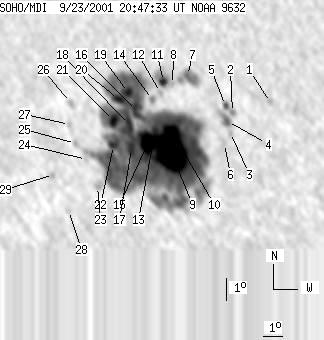

SOHO MDI 2001-09-23 20:47:33 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 6 0 3 -16.67 279.90 -26.54 132.25 0.5805 811.0 711.8
2 0 6 0 4 -17.20 278.06 -28.38 131.07 0.6044 567.0 481.5
3 0 4 0 3 -18.07 277.82 -28.62 131.95 0.6145 -279.0 -352.0
4 3 20 2 12 -17.60 277.76 -28.68 131.30 0.6111 -33.3 9.7
5 3 6 2 4 -16.92 277.79 -28.65 130.43 0.6049 546.2 426.2
6 0 4 0 3 -18.57 277.45 -28.99 132.21 0.6226 -288.0 -421.5
7 2 42 1 27 -15.75 276.21 -30.23 127.40 0.6123 -770.3 -672.6
8 0 3 0 2 -16.18 275.42 -31.01 127.27 0.6241 -535.0 -567.3
9 110 1552 72 1017 -19.13 274.80 -31.64 130.48 0.6538 -1324.2 -219.0
10 18 -9 11 -9 -18.17 275.00 -31.44 129.46 0.6442 -2050.8 999999
11 6 28 4 18 -16.08 275.01 -31.43 126.78 0.6278 -308.1 -33.9
12 0 4 0 2 -16.56 274.78 -31.66 127.22 0.6340 -413.0 -324.5
13 6 -9 4 -9 -18.18 274.23 -32.21 128.80 0.6522 -1204.6 999999
14 0 7 0 5 -16.89 274.34 -32.10 127.26 0.6412 -355.0 -238.3
15 33 -9 22 -9 -18.82 273.70 -32.74 129.15 0.6625 -1162.1 999999
16 15 -9 10 -9 -17.42 273.46 -32.98 127.21 0.6545 -121.6 999999
17 11 -9 8 -9 -19.09 272.85 -33.59 128.79 0.6731 -472.9 999999
18 11 -9 8 -9 -18.05 272.98 -33.46 127.61 0.6641 -116.3 999999
19 7 -9 5 -9 -16.67 273.22 -33.22 126.06 0.6515 1451.6 999999
20 10 -9 7 -9 -17.01 272.66 -33.78 126.04 0.6598 964.7 999999
21 9 -9 6 -9 -17.93 272.22 -34.22 126.86 0.6711 1192.8 999999
22 5 -9 3 -9 -19.03 271.97 -34.47 128.01 0.6815 896.5 999999
23 0 13 0 9 -20.90 270.67 -35.77 129.25 0.7075 927.0 682.6
24 0 2 0 2 -19.75 270.42 -36.02 127.70 0.7019 480.0 457.9
25 0 4 0 3 -19.08 270.02 -36.42 126.62 0.7013 413.0 540.0
26 0 5 0 4 -17.32 270.20 -36.24 124.57 0.6878 772.0 653.9
27 0 4 0 3 -18.28 269.92 -36.52 125.56 0.6970 476.0 476.9
28 0 5 0 4 -22.10 268.79 -37.64 129.26 0.7332 657.0 542.6
29 0 4 0 3 -20.55 268.47 -37.97 127.25 0.7260 667.0 596.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
