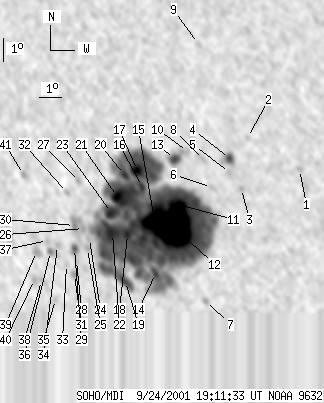

SOHO MDI 2001-09-24 19:11:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 282 | 1975 | 165 | 1164 | -18.93 | 273.63 | -20.49 | 142.38 | 0.5443 | -763.2 | -99.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2001-09-24 19:11:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -16.42 | 280.23 | -13.89 | 149.64 | 0.4576 | 732.0 | 550.3 | |
| 0 | 4 | 0 | 2 | -15.14 | 278.15 | -15.97 | 144.43 | 0.4586 | 485.0 | 355.2 | |
| 0 | 4 | 0 | 2 | -17.32 | 277.71 | -16.41 | 146.41 | 0.4896 | 274.0 | 177.2 | |
| 6 | 20 | 3 | 11 | -16.06 | 277.32 | -16.81 | 144.23 | 0.4774 | -951.0 | -627.4 | |
| 0 | 5 | 0 | 3 | -16.65 | 277.26 | -16.86 | 144.89 | 0.4852 | -614.0 | -610.8 | |
| 0 | 5 | 0 | 3 | -17.32 | 276.43 | -17.70 | 144.41 | 0.5007 | -422.0 | -365.6 | |
| 0 | 5 | 0 | 3 | -22.33 | 275.57 | -18.55 | 148.65 | 0.5679 | 533.0 | 396.8 | |
| 0 | 9 | 0 | 5 | -16.14 | 276.20 | -17.92 | 142.59 | 0.4886 | -605.0 | -442.6 | |
| 0 | 5 | 0 | 3 | -11.31 | 276.37 | -17.75 | 135.81 | 0.4307 | 299.0 | 182.3 | |
| 0 | 11 | 0 | 6 | -15.83 | 275.55 | -18.58 | 141.19 | 0.4910 | -686.0 | -616.2 | |
| 15 | 1765 | 8 | 1040 | -18.11 | 274.88 | -19.25 | 143.09 | 0.5238 | -2198.2 | -146.7 | |
| 128 | -11 | 75 | -11 | -19.16 | 274.62 | -19.50 | 143.96 | 0.5382 | -1511.3 | 999999 | |
| 9 | 17 | 5 | 10 | -16.19 | 274.96 | -19.17 | 140.79 | 0.5008 | -282.0 | -111.9 | |
| 5 | -11 | 3 | -11 | -21.18 | 273.51 | -20.62 | 144.72 | 0.5707 | -848.5 | 999999 | |
| 36 | -11 | 21 | -11 | -18.81 | 273.79 | -20.34 | 142.41 | 0.5414 | -1539.4 | 999999 | |
| 4 | -11 | 2 | -11 | -17.41 | 273.44 | -20.69 | 140.22 | 0.5290 | -172.9 | 999999 | |
| 11 | -11 | 6 | -11 | -16.73 | 273.30 | -20.83 | 139.16 | 0.5228 | 1664.4 | 999999 | |
| 8 | -11 | 5 | -11 | -19.52 | 272.50 | -21.62 | 141.56 | 0.5608 | -705.8 | 999999 | |
| 8 | -11 | 5 | -11 | -21.60 | 272.10 | -22.03 | 143.40 | 0.5871 | 434.6 | 999999 | |
| 4 | -11 | 3 | -11 | -16.93 | 272.71 | -21.42 | 138.63 | 0.5307 | 1304.9 | 999999 | |
| 10 | -11 | 6 | -11 | -17.89 | 272.28 | -21.85 | 139.30 | 0.5452 | 1649.0 | 999999 | |
| 22 | -11 | 13 | -11 | -19.51 | 271.83 | -22.29 | 140.70 | 0.5667 | 550.6 | 999999 | |
| 13 | -11 | 8 | -11 | -18.59 | 271.92 | -22.21 | 139.71 | 0.5562 | 804.7 | 999999 | |
| 0 | 3 | 0 | 2 | -19.78 | 270.76 | -23.37 | 139.71 | 0.5794 | 875.0 | 803.5 | |
| 0 | 5 | 0 | 3 | -20.22 | 270.60 | -23.53 | 140.04 | 0.5855 | 758.0 | 746.7 | |
| 0 | 5 | 0 | 3 | -19.35 | 270.55 | -23.57 | 138.97 | 0.5769 | 970.0 | 876.8 | |
| 0 | 6 | 0 | 3 | -17.33 | 270.67 | -23.46 | 136.58 | 0.5550 | 534.0 | 611.7 | |
| 0 | 4 | 0 | 2 | -20.78 | 270.00 | -24.12 | 140.00 | 0.5966 | 662.0 | 526.0 | |
| 3 | 12 | 2 | 7 | -20.25 | 270.00 | -24.12 | 139.39 | 0.5913 | 1012.7 | 808.9 | |
| 0 | 18 | 0 | 11 | -19.24 | 270.16 | -23.96 | 138.37 | 0.5794 | 997.0 | 800.6 | |
| 0 | 7 | 0 | 4 | -21.40 | 269.80 | -24.32 | 140.48 | 0.6048 | 860.0 | 686.2 | |
| 0 | 4 | 0 | 2 | -17.83 | 270.06 | -24.06 | 136.50 | 0.5661 | 741.0 | 624.7 | |
| 0 | 4 | 0 | 3 | -20.98 | 269.51 | -24.61 | 139.67 | 0.6031 | 653.0 | 657.1 | |
| 0 | 3 | 0 | 2 | -20.16 | 269.24 | -24.88 | 138.41 | 0.5973 | 617.0 | 607.9 | |
| 0 | 4 | 0 | 3 | -22.57 | 268.70 | -25.42 | 140.56 | 0.6263 | 404.0 | 334.6 | |
| 0 | 13 | 0 | 8 | -20.44 | 268.87 | -25.25 | 138.33 | 0.6036 | 684.0 | 647.3 | |
| 0 | 4 | 0 | 2 | -19.97 | 268.82 | -25.31 | 137.71 | 0.5994 | 676.0 | 556.1 | |
| 0 | 6 | 0 | 4 | -21.76 | 268.21 | -25.92 | 139.12 | 0.6225 | 746.0 | 697.9 | |
| 0 | 12 | 0 | 8 | -20.48 | 268.22 | -25.91 | 137.66 | 0.6100 | 567.0 | 597.7 | |
| 0 | 4 | 0 | 2 | -21.73 | 267.89 | -26.24 | 138.75 | 0.6251 | 826.0 | 632.2 | |
| 0 | 6 | 0 | 4 | -17.16 | 268.18 | -25.95 | 133.50 | 0.5786 | 722.0 | 568.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
