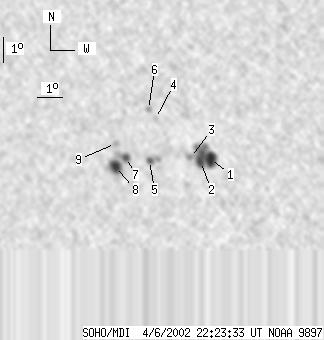

SOHO MDI 2002-04-06 22:23:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39 | 147 | 19 | 74 | -1.99 | 260.20 | 4.39 | 315.88 | 0.1089 | -189.7 | -98.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-04-06 22:23:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 63 | 7 | 32 | -2.04 | 262.02 | 6.21 | 304.00 | 0.1309 | -1586.7 | -1180.3 | |
| 7 | -1 | 3 | -1 | -2.12 | 261.62 | 5.82 | 305.24 | 0.1245 | -1499.0 | 999999 | |
| 0 | 5 | 0 | 2 | -1.97 | 261.23 | 5.42 | 308.16 | 0.1207 | -1129.0 | -843.9 | |
| 0 | 4 | 0 | 2 | -0.46 | 259.86 | 4.06 | 324.92 | 0.1236 | 764.0 | 600.0 | |
| 3 | 14 | 2 | 7 | -2.10 | 259.63 | 3.82 | 317.29 | 0.0987 | 882.3 | 716.7 | |
| 0 | 5 | 0 | 3 | -0.11 | 259.59 | 3.78 | 328.30 | 0.1261 | 961.0 | 591.9 | |
| 4 | 52 | 2 | 26 | -1.99 | 258.74 | 2.93 | 325.50 | 0.0905 | 1059.2 | 866.8 | |
| 11 | -7 | 5 | -7 | -2.34 | 258.31 | 2.50 | 327.40 | 0.0813 | 1531.4 | 999999 | |
| 0 | 4 | 0 | 2 | -1.45 | 258.31 | 2.50 | 332.51 | 0.0948 | 943.0 | 834.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
