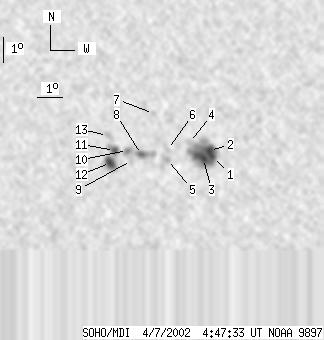

SOHO MDI 2002-04-07 04:47:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34 | 183 | 17 | 95 | -2.01 | 260.71 | 8.42 | 297.10 | 0.1646 | -44.4 | -241.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-04-07 04:47:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 92 | 2 | 46 | -2.12 | 262.43 | 10.14 | 291.76 | 0.1903 | -1530.1 | -1145.4 | |
| 8 | -1 | 4 | -1 | -1.89 | 262.31 | 10.02 | 293.14 | 0.1899 | -1579.9 | 999999 | |
| 3 | -1 | 2 | -1 | -2.20 | 262.07 | 9.78 | 292.07 | 0.1841 | -2057.9 | 999999 | |
| 0 | 3 | 0 | 2 | -1.59 | 261.52 | 9.23 | 296.44 | 0.1798 | -753.0 | -725.0 | |
| 0 | 6 | 0 | 3 | -2.26 | 260.66 | 8.36 | 295.13 | 0.1613 | -842.0 | -658.4 | |
| 0 | 3 | 0 | 2 | -1.87 | 260.65 | 8.36 | 297.28 | 0.1643 | 510.0 | 161.3 | |
| 0 | 3 | 0 | 2 | -0.48 | 260.10 | 7.81 | 306.19 | 0.1691 | 762.0 | 596.8 | |
| 4 | 22 | 2 | 11 | -2.09 | 259.63 | 7.34 | 299.27 | 0.1471 | 1113.6 | 597.6 | |
| 0 | 5 | 0 | 3 | -2.32 | 259.24 | 6.95 | 299.17 | 0.1391 | 365.0 | 523.2 | |
| 0 | 8 | 0 | 4 | -1.94 | 259.08 | 6.79 | 302.15 | 0.1402 | 1288.0 | 961.2 | |
| 5 | 13 | 2 | 7 | -1.94 | 258.57 | 6.28 | 304.18 | 0.1328 | 1157.1 | 888.3 | |
| 10 | 21 | 5 | 11 | -2.41 | 258.42 | 6.13 | 301.80 | 0.1261 | 1533.6 | 975.3 | |
| 0 | 7 | 0 | 4 | -1.36 | 258.30 | 6.01 | 308.92 | 0.1351 | 1016.0 | 688.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
