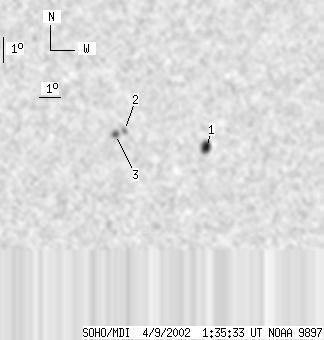

SOHO MDI 2002-04-09 01:35:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 33 | 7 | 19 | -2.69 | 261.40 | 33.72 | 274.34 | 0.5580 | -807.2 | -194.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-04-09 01:35:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 19 | 6 | 11 | -2.83 | 263.13 | 35.45 | 273.71 | 0.5828 | -1162.0 | -807.4 | |
| 0 | 5 | 0 | 3 | -2.39 | 259.27 | 31.60 | 275.36 | 0.5279 | 665.0 | 483.9 | |
| 3 | 9 | 1 | 5 | -2.57 | 258.86 | 31.19 | 275.13 | 0.5216 | 1027.2 | 745.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
