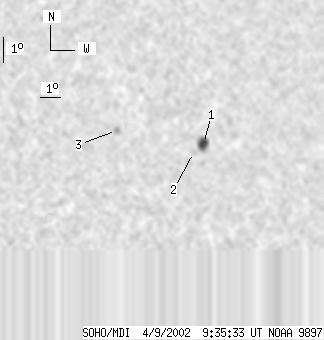

SOHO MDI 2002-04-09 09:35:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 30 | 7 | 19 | -2.83 | 262.55 | 39.28 | 273.00 | 0.6352 | -968.4 | -409.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-04-09 09:35:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 21 | 7 | 14 | -2.82 | 263.28 | 40.01 | 272.87 | 0.6452 | -1035.5 | -664.3 | |
| 0 | 3 | 0 | 2 | -3.21 | 262.79 | 39.51 | 272.35 | 0.6381 | -499.0 | -375.5 | |
| 0 | 6 | 0 | 3 | -2.60 | 258.97 | 35.69 | 274.03 | 0.5865 | 910.0 | 754.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
