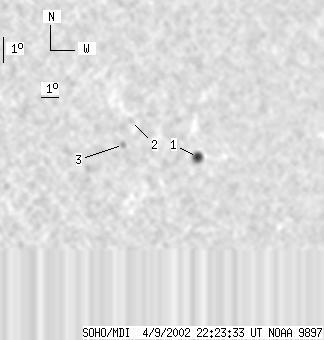

SOHO MDI 2002-04-09 22:23:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 23 | 6 | 17 | -2.72 | 262.34 | 46.10 | 272.08 | 0.7222 | -710.3 | -219.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-04-09 22:23:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 16 | 6 | 12 | -2.89 | 263.51 | 47.27 | 271.67 | 0.7362 | -793.8 | -489.7 | |
| 0 | 3 | 0 | 2 | -1.73 | 259.78 | 43.54 | 273.86 | 0.6925 | 530.0 | 519.7 | |
| 0 | 4 | 0 | 3 | -2.69 | 259.38 | 43.14 | 272.53 | 0.6861 | 554.0 | 369.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
