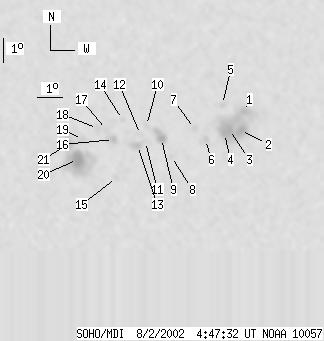

SOHO MDI 2002-08-02 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68 | 392 | 34 | 201 | -8.24 | 145.16 | 0.41 | 181.97 | 0.2497 | 223.6 | 187.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-08-02 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 151 | 2 | 77 | -7.10 | 148.61 | 3.86 | 196.58 | 0.2352 | 1198.2 | -193.4 | |
| 10 | -1 | 5 | -1 | -7.88 | 148.46 | 3.71 | 195.10 | 0.2471 | -657.9 | 999999 | |
| 7 | -1 | 3 | -1 | -7.83 | 148.02 | 3.27 | 193.41 | 0.2446 | -1640.7 | 999999 | |
| 7 | -1 | 4 | -1 | -7.99 | 147.82 | 3.07 | 192.48 | 0.2465 | -1444.2 | 999999 | |
| 0 | 6 | 0 | 3 | -6.81 | 147.73 | 2.98 | 193.24 | 0.2266 | 323.0 | 320.9 | |
| 0 | 11 | 0 | 5 | -8.23 | 147.06 | 2.31 | 189.30 | 0.2481 | -995.0 | -622.1 | |
| 0 | 4 | 0 | 2 | -7.78 | 146.62 | 1.87 | 187.79 | 0.2394 | -772.0 | -598.2 | |
| 0 | 3 | 0 | 1 | -8.92 | 145.70 | 0.95 | 183.69 | 0.2572 | -622.0 | -505.9 | |
| 7 | 27 | 4 | 14 | -8.19 | 145.30 | 0.55 | 182.25 | 0.2443 | -971.4 | -654.3 | |
| 0 | 6 | 0 | 3 | -7.66 | 144.70 | -0.05 | 179.80 | 0.2351 | -670.0 | -481.6 | |
| 0 | 6 | 0 | 3 | -8.31 | 144.66 | -0.09 | 179.65 | 0.2462 | 430.0 | 346.2 | |
| 0 | 5 | 0 | 3 | -8.03 | 144.46 | -0.29 | 178.82 | 0.2414 | 272.0 | 258.9 | |
| 3 | 15 | 2 | 8 | -8.47 | 144.34 | -0.41 | 178.38 | 0.2491 | 682.9 | 527.6 | |
| 0 | 4 | 0 | 2 | -7.42 | 143.75 | -1.00 | 175.68 | 0.2316 | 598.0 | 461.8 | |
| 0 | 5 | 0 | 2 | -9.79 | 143.50 | -1.25 | 175.45 | 0.2720 | -813.0 | -526.4 | |
| 3 | 13 | 1 | 7 | -8.23 | 143.39 | -1.36 | 174.48 | 0.2460 | 1055.9 | 764.7 | |
| 0 | 3 | 0 | 2 | -7.82 | 143.11 | -1.64 | 173.16 | 0.2396 | 705.0 | 764.3 | |
| 0 | 8 | 0 | 4 | -7.78 | 142.75 | -2.00 | 171.66 | 0.2397 | 971.0 | 767.0 | |
| 0 | 9 | 0 | 5 | -8.24 | 142.15 | -2.60 | 169.55 | 0.2490 | 863.0 | 783.6 | |
| 20 | 97 | 10 | 50 | -9.05 | 141.94 | -2.81 | 169.35 | 0.2632 | 1778.7 | 778.8 | |
| 7 | 19 | 3 | 10 | -8.44 | 141.50 | -3.25 | 167.23 | 0.2546 | 1116.1 | 838.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
