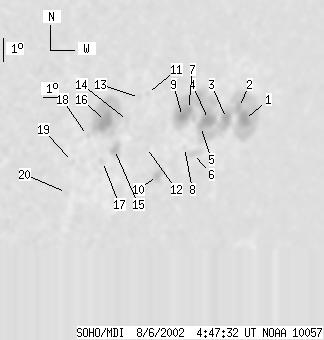

SOHO MDI 2002-08-06 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114 | 670 | 111 | 646 | -7.74 | 149.32 | 57.49 | 257.09 | 0.8574 | -331.6 | -125.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-08-06 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 437 | 22 | 449 | -8.03 | 153.77 | 61.94 | 257.81 | 0.8958 | -478.6 | -302.6 | |
| 6 | -1 | 6 | -1 | -7.49 | 153.12 | 61.29 | 258.27 | 0.8900 | -732.3 | 999999 | |
| 13 | -1 | 13 | -1 | -7.85 | 152.21 | 60.39 | 257.68 | 0.8835 | -559.8 | 999999 | |
| 20 | -1 | 20 | -1 | -7.75 | 150.76 | 58.93 | 257.46 | 0.8714 | -799.3 | 999999 | |
| 5 | -1 | 5 | -1 | -7.98 | 150.19 | 58.36 | 257.07 | 0.8671 | -750.1 | 999999 | |
| 0 | 14 | 0 | 14 | -9.05 | 149.92 | 58.09 | 255.79 | 0.8668 | -272.0 | -417.6 | |
| 8 | -1 | 8 | -1 | -7.19 | 149.12 | 57.29 | 257.71 | 0.8564 | -898.5 | 999999 | |
| 0 | 1 | 0 | 1 | -8.74 | 149.16 | 57.33 | 255.96 | 0.8597 | -529.0 | -525.6 | |
| 10 | -1 | 10 | -1 | -7.44 | 148.72 | 56.90 | 257.33 | 0.8534 | -1050.0 | 999999 | |
| 5 | 16 | 5 | 15 | -9.72 | 147.43 | 55.60 | 254.38 | 0.8466 | 478.5 | 194.6 | |
| 0 | 3 | 0 | 2 | -6.27 | 146.03 | 54.21 | 258.04 | 0.8263 | 414.0 | 314.1 | |
| 0 | 2 | 0 | 2 | -8.48 | 146.37 | 54.54 | 255.52 | 0.8342 | 84.0 | 155.1 | |
| 0 | 5 | 0 | 4 | -6.38 | 145.51 | 53.68 | 257.77 | 0.8215 | 475.0 | 346.3 | |
| 0 | 4 | 0 | 3 | -7.25 | 144.84 | 53.02 | 256.56 | 0.8169 | -329.0 | -229.3 | |
| 5 | 22 | 4 | 19 | -8.37 | 144.19 | 52.36 | 255.03 | 0.8131 | 532.0 | 173.9 | |
| 22 | 148 | 18 | 123 | -7.17 | 143.39 | 51.56 | 256.26 | 0.8023 | 958.1 | 381.7 | |
| 0 | 6 | 0 | 5 | -8.80 | 143.49 | 51.66 | 254.31 | 0.8073 | 612.0 | 493.1 | |
| 0 | 5 | 0 | 4 | -7.64 | 142.32 | 50.49 | 255.36 | 0.7926 | 633.0 | 456.6 | |
| 0 | 3 | 0 | 2 | -8.63 | 141.55 | 49.72 | 253.90 | 0.7873 | 515.0 | 522.3 | |
| 0 | 4 | 0 | 3 | -9.89 | 141.42 | 49.59 | 252.32 | 0.7896 | 317.0 | 263.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
