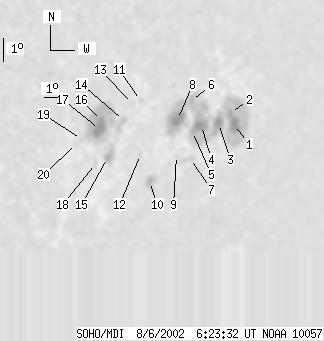

SOHO MDI 2002-08-06 06:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105 | 654 | 105 | 649 | -7.69 | 149.38 | 58.43 | 257.37 | 0.8654 | -323.9 | -126.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-08-06 06:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 421 | 22 | 445 | -8.00 | 153.74 | 62.79 | 258.02 | 0.9021 | -524.9 | -300.7 | |
| 6 | -1 | 7 | -1 | -7.46 | 153.24 | 62.30 | 258.51 | 0.8977 | -696.8 | 999999 | |
| 11 | -1 | 12 | -1 | -7.82 | 152.31 | 61.37 | 257.92 | 0.8911 | -548.8 | 999999 | |
| 16 | -1 | 16 | -1 | -7.76 | 150.90 | 59.96 | 257.67 | 0.8799 | -772.0 | 999999 | |
| 4 | -1 | 4 | -1 | -7.94 | 150.23 | 59.28 | 257.32 | 0.8747 | -625.0 | 999999 | |
| 3 | -1 | 3 | -1 | -6.66 | 149.87 | 58.93 | 258.69 | 0.8696 | 99.4 | 999999 | |
| 0 | 12 | 0 | 13 | -9.05 | 150.35 | 59.41 | 256.11 | 0.8777 | -574.0 | -393.2 | |
| 17 | -1 | 17 | -1 | -7.34 | 148.93 | 57.99 | 257.71 | 0.8628 | -995.7 | 999999 | |
| 0 | 2 | 0 | 2 | -8.82 | 149.20 | 58.26 | 256.09 | 0.8677 | -592.0 | -537.6 | |
| 5 | 17 | 4 | 16 | -9.72 | 147.41 | 56.47 | 254.61 | 0.8542 | 515.7 | 126.8 | |
| 0 | 4 | 0 | 4 | -6.31 | 146.05 | 55.11 | 258.21 | 0.8350 | 344.0 | 271.8 | |
| 0 | 3 | 0 | 3 | -8.53 | 146.48 | 55.53 | 255.72 | 0.8434 | 265.0 | 139.4 | |
| 0 | 3 | 0 | 3 | -6.38 | 145.51 | 54.56 | 257.99 | 0.8300 | 184.0 | 356.4 | |
| 0 | 15 | 0 | 13 | -7.02 | 144.99 | 54.05 | 257.11 | 0.8264 | -83.0 | -132.3 | |
| 4 | 26 | 3 | 23 | -8.45 | 144.18 | 53.23 | 255.19 | 0.8218 | 554.6 | 118.8 | |
| 4 | 141 | 3 | 119 | -6.89 | 143.50 | 52.55 | 256.87 | 0.8116 | 959.3 | 405.2 | |
| 16 | -16 | 14 | -16 | -7.25 | 143.42 | 52.48 | 256.42 | 0.8117 | 937.0 | 999999 | |
| 0 | 5 | 0 | 4 | -8.62 | 143.41 | 52.47 | 254.76 | 0.8148 | 556.0 | 538.4 | |
| 0 | 2 | 0 | 2 | -7.55 | 142.31 | 51.36 | 255.72 | 0.8012 | 265.0 | 379.1 | |
| 0 | 3 | 0 | 2 | -7.69 | 142.01 | 51.06 | 255.47 | 0.7986 | 545.0 | 539.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
