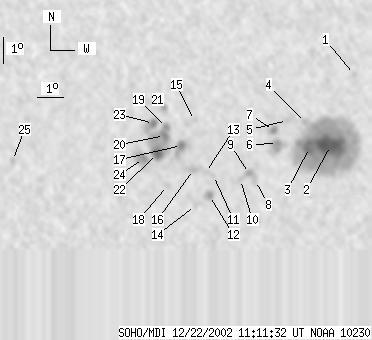

SOHO MDI 2002-12-22 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95 | 702 | 48 | 349 | -8.77 | 70.32 | 2.43 | 197.69 | 0.1381 | -890.1 | -421.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-12-22 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -5.96 | 73.51 | 5.63 | 233.42 | 0.1220 | -848.0 | -635.7 | |
| 40 | 408 | 20 | 204 | -8.69 | 72.61 | 4.73 | 214.21 | 0.1456 | -2018.2 | -763.0 | |
| 13 | -2 | 6 | -2 | -8.77 | 71.80 | 3.91 | 209.09 | 0.1393 | -1653.1 | 999999 | |
| 0 | 5 | 0 | 3 | -7.81 | 71.63 | 3.75 | 211.79 | 0.1235 | -796.0 | -634.5 | |
| 0 | 11 | 0 | 5 | -7.73 | 70.94 | 3.05 | 207.08 | 0.1164 | -670.0 | -455.6 | |
| 3 | 28 | 2 | 14 | -8.62 | 70.55 | 2.67 | 201.23 | 0.1277 | -1382.6 | -1004.0 | |
| 4 | 10 | 2 | 5 | -8.12 | 70.40 | 2.51 | 201.55 | 0.1186 | -1123.2 | -785.2 | |
| 0 | 7 | 0 | 3 | -10.05 | 69.71 | 1.82 | 192.33 | 0.1473 | -805.0 | -691.2 | |
| 0 | 7 | 0 | 3 | -9.78 | 69.47 | 1.59 | 191.15 | 0.1419 | -885.0 | -684.3 | |
| 0 | 5 | 0 | 3 | -10.01 | 69.13 | 1.24 | 188.49 | 0.1448 | 600.0 | 363.0 | |
| 0 | 3 | 0 | 1 | -9.86 | 68.07 | 0.19 | 181.33 | 0.1406 | 796.0 | 632.1 | |
| 2 | 13 | 1 | 6 | -10.63 | 67.92 | 0.03 | 180.21 | 0.1540 | 1255.5 | 848.1 | |
| 0 | 4 | 0 | 2 | -9.74 | 67.76 | -0.12 | 179.12 | 0.1386 | 464.0 | 490.7 | |
| 0 | 6 | 0 | 3 | -11.02 | 67.37 | -0.51 | 176.85 | 0.1609 | 604.0 | 467.1 | |
| 0 | 4 | 0 | 2 | -7.73 | 67.34 | -0.55 | 174.75 | 0.1040 | 774.0 | 560.3 | |
| 0 | 16 | 0 | 8 | -9.63 | 67.30 | -0.59 | 175.73 | 0.1369 | 1251.0 | 846.2 | |
| 6 | 25 | 3 | 12 | -8.70 | 66.83 | -1.05 | 171.38 | 0.1218 | 1350.3 | 993.5 | |
| 0 | 6 | 0 | 3 | -10.24 | 66.28 | -1.60 | 169.37 | 0.1498 | 829.0 | 649.9 | |
| 2 | 81 | 1 | 41 | -8.00 | 66.26 | -1.63 | 165.35 | 0.1119 | -1204.8 | 69.7 | |
| 5 | -19 | 3 | -19 | -8.31 | 66.18 | -1.71 | 165.38 | 0.1175 | -1027.3 | 999999 | |
| 0 | 7 | 0 | 3 | -7.23 | 66.18 | -1.71 | 162.64 | 0.0994 | -909.0 | -745.7 | |
| 11 | -19 | 6 | -19 | -9.01 | 65.90 | -1.98 | 164.72 | 0.1304 | 1451.4 | 999999 | |
| 5 | 17 | 2 | 8 | -7.85 | 65.75 | -2.13 | 160.67 | 0.1119 | -1299.8 | -995.1 | |
| 4 | 32 | 2 | 16 | -9.20 | 65.36 | -2.53 | 161.27 | 0.1363 | 1360.7 | 727.1 | |
| 0 | 4 | 0 | 2 | -9.26 | 60.25 | -7.64 | 134.72 | 0.1854 | 734.0 | 509.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
